SIMadmin Class Reference

Administration base class for FEM simulators. More...

#include <SIMadmin.h>

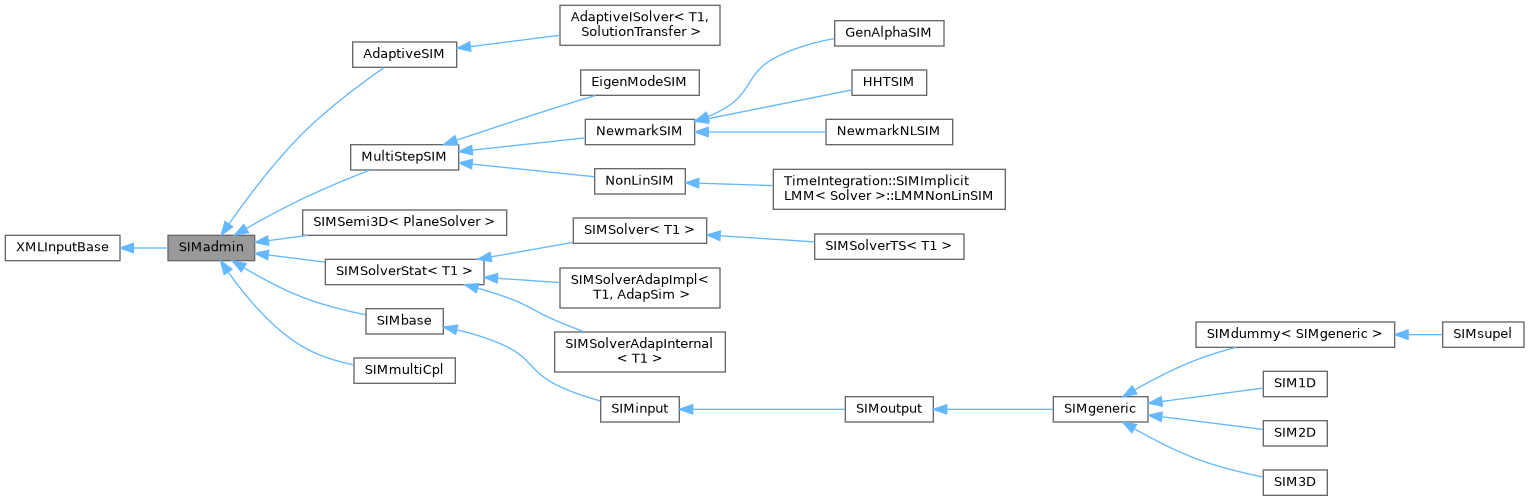

Inheritance diagram for SIMadmin:

Collaboration diagram for SIMadmin:

Public Member Functions
virtual	~SIMadmin ()
	Empty destructor.
virtual bool	read (const char *fileName)
	Reads model data from the specified input file *fileName.
virtual bool	parse (char *keyWord, std::istream &is)
	Parses a data section from an input stream.
virtual bool	parse (const tinyxml2::XMLElement *elem)
	Parses a data section from an XML document.
virtual bool	preprocess (const IntVec &ignored={}, bool fixDup=false)
	Performs some pre-processing tasks on the FE model.
virtual bool	preprocessC (const IntVec &, bool, double=0.0)
	Performs some pre-processing tasks on the FE model.
const ProcessAdm &	getProcessAdm () const
	Returns the parallel process administrator.
int	getGlobalProcessID () const
	Returns the global process ID.
const std::string &	getHeading () const
	Returns the simulator heading.
void	setHeading (const std::string &heading)
	Defines the simulator heading.
void	printHeading (int &supStep) const
	Prints the heading of this simulator, if any, to IFEM::cout.
Public Member Functions inherited from XMLInputBase
bool	readXML (const char *fileName, bool verbose=true)
	Reads an XML input file.
bool	loadXML (const char *xml)
	Loads data from an XML-formatted text string.

Public Attributes
SIMoptions &	opt
	Simulation control parameters.

Static Public Attributes
static int	msgLevel = 2
	Controls the console output amount during solving.

Protected Types
using	IntVec = std::vector< int >
	Convenience alias.

Protected Member Functions
	SIMadmin (const char *heading=nullptr)
	The default constructor initializes the process administrator.
	SIMadmin (SIMadmin &anotherSIM)
	Copy constructor.
Protected Member Functions inherited from XMLInputBase
const tinyxml2::XMLElement *	loadFile (tinyxml2::XMLDocument &doc, const char *fileName, bool verbose=false)
	Loads an XML input file into a tinyxml2::XMLDocument object.
virtual const char **	getPrioritizedTags () const
	Returns a list of prioritized XML-tags.

Protected Attributes
ProcessAdm	adm
	Parallel administrator.
int	myPid
	Processor ID in parallel simulations.
int	nProc
	Number of processors in parallel simulations.
std::string	myHeading
	Heading written before reading the input file.

Private Member Functions
bool	readFlat (const char *fileName)
	Reads a flat text input file (the old file format).

Private Attributes
SIMoptions	myOpts
	Actual control parameters owned by this simulator.

Detailed Description

Administration base class for FEM simulators.

This class serves as a common base for all types of simulator drivers in IFEM and contains the general top-level methods for reading the model input file, as well as data for administration of parallel executions.

Member Function Documentation

getGlobalProcessID()

int SIMadmin::getGlobalProcessID ( ) const

inline

Returns the global process ID.

Note

May be different from the process ID used in the equation solver.

References myPid.

parse() [1/2]

bool SIMadmin::parse ( char *  keyWord, std::istream &  is  )

virtual

Parses a data section from an input stream.

Reimplemented in SIMSolver< T1 >, SIMSemi3D< PlaneSolver >, AdaptiveSIM, MultiStepSIM, NewmarkSIM, NonLinSIM, SIM1D, SIM2D, SIM3D, SIMinput, SIMmultiCpl, SIMoutput, SIMoutput, and SIMSolverAdapImpl< T1, AdapSim >.

Referenced by SIM1D::parse(), SIM2D::parse(), SIM3D::parse(), SIM1D::parse(), SIM2D::parse(), SIM3D::parse(), SIMinput::parse(), SIMsupel::parse(), and readFlat().

parse() [2/2]

bool SIMadmin::parse ( const tinyxml2::XMLElement *  elem )

virtual

Parses a data section from an XML document.

Implements XMLInputBase.

Reimplemented in SIMSemi3D< PlaneSolver >, SIMSolver< T1 >, SIMSolverAdapImpl< T1, AdapSim >, SIMSolverTS< T1 >, AdaptiveSIM, EigenModeSIM, EigenModeSIM, GenAlphaSIM, GenAlphaSIM, HHTSIM, HHTSIM, MultiStepSIM, MultiStepSIM, NewmarkNLSIM, NewmarkNLSIM, NewmarkSIM, NewmarkSIM, NewmarkSIM, NonLinSIM, SIM1D, SIM2D, SIM3D, SIMinput, SIMmultiCpl, SIMmultiCpl, SIMoutput, SIMsupel, SIMSemi3D< PlaneSolver >, and SIMSolverAdapInternal< T1 >.

References utl::getValue(), and msgLevel.

preprocess()

virtual bool SIMadmin::preprocess ( const IntVec &  ignored = {}, bool  fixDup = false  )

inlinevirtual

Performs some pre-processing tasks on the FE model.

Reimplemented in SIMSemi3D< PlaneSolver >, and MultiStepSIM.

Referenced by MultiStepSIM::preprocess(), and AdaptiveSIM::solveStep().

preprocessC()

virtual bool SIMadmin::preprocessC ( const IntVec &  , bool  , double  = 0.0  )

inlinevirtual

Performs some pre-processing tasks on the FE model.

Reimplemented in AdaptiveSIM, SIMbase, and SIMmultiCpl.

read()

bool SIMadmin::read ( const char *  fileName )

virtual

Reads model data from the specified input file *fileName.

Reimplemented in SIMSolverStat< T1 >, SIMSolver< T1 >, SIMSolverAdapImpl< T1, AdapSim >, SIMSolverTS< T1 >, SIMSolverAdapInternal< T1 >, and SIMSemi3D< PlaneSolver >.

References IFEM::applyCommandLineOptions(), opt, printHeading(), readFlat(), and XMLInputBase::readXML().

Referenced by SIMSolver< T1 >::read(), SIMSolverAdapImpl< T1, AdapSim >::read(), SIMSolverTS< T1 >::read(), SIMSolverAdapInternal< T1 >::read(), SIMSemi3D< PlaneSolver >::read(), SIMbase::readModel(), and AdaptiveSIM::solveStep().

---

The documentation for this class was generated from the following files:

• /home/runner/work/IFEM-2/IFEM-2/src/SIM/SIMadmin.h
• /home/runner/work/IFEM-2/IFEM-2/src/SIM/SIMadmin.C
