Driver class for plane-decoupled 3D problems. More...

#include <SIMSemi3D.h>

Inheritance diagram for SIMSemi3D< PlaneSolver >:

[legend]

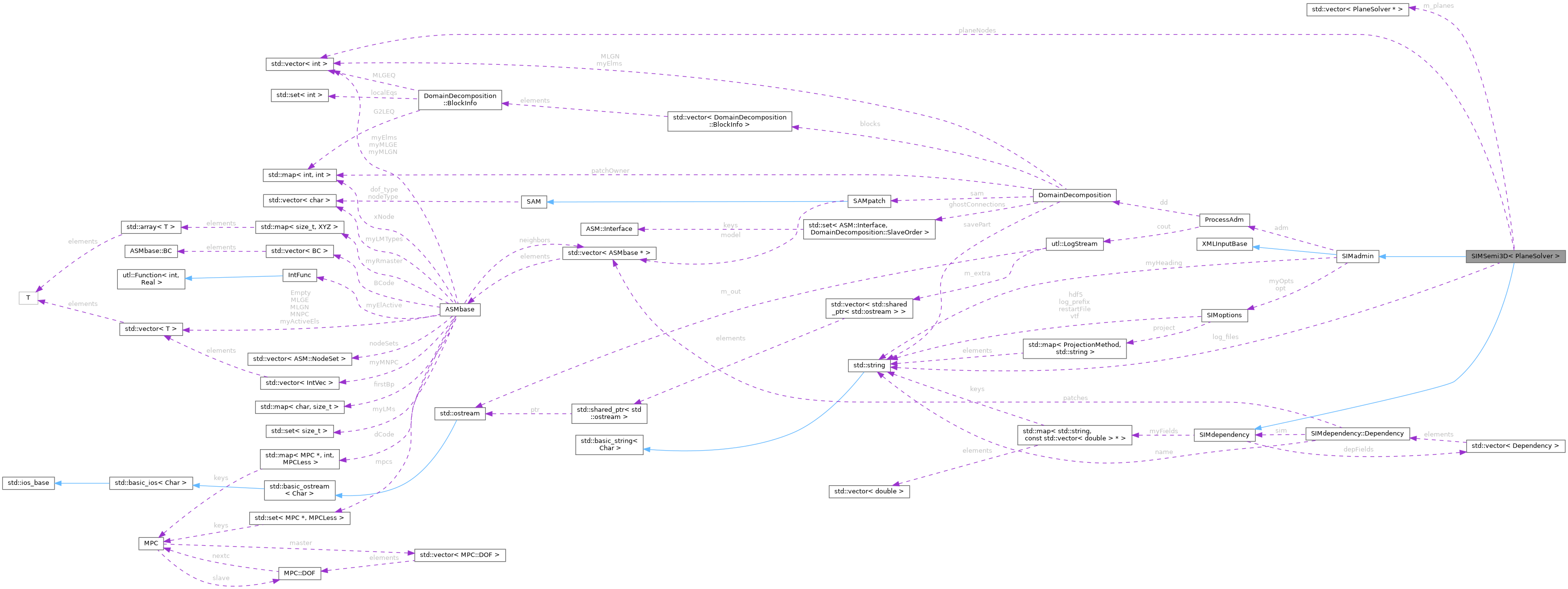

Collaboration diagram for SIMSemi3D< PlaneSolver >:

[legend]

Public Types
enum	{ dimension = 2 }
	Enum announcing the dimensionality.

typedef PlaneSolver::SetupProps	SetupProps
	Convenience type.

Public Types inherited from SIMdependency
typedef std::vector< ASMbase * >	PatchVec
	Spline patch container.

Public Member Functions
	SIMSemi3D (const SetupProps &props_)
	The constructor initializes the setup properties.

virtual	~SIMSemi3D ()
	The destructor deletes the plane-wise sub-step solvers.

bool	advanceStep (TimeStep &tp)
	Advances the time step one step forward.

int	getBDForder () const
	Returns the order of the BDF scheme.

int	getDumpInterval () const
	Returns the visualization dump interval.

void	printFinalNorms (const TimeStep &)
	Dummy method.

bool	preprocess (const std::vector< int > &={}, bool=false) override
	Performs some pre-processing tasks on the FE model.

void	grabPlaneNodes ()
	Get FSI nodes for all planes.

std::string	getName () const override
	Returns the name of this simulator (for use in the HDF5 export).

void	registerFields (const DataExporter &exporter)
	Adds fields to a data exporter.

bool	init (const TimeStep &tp)
	Initializes for time-dependent simulation.

bool	saveModel (char *, int &, int &)
	Dummy method (VTF export is not supported).

bool	saveStep (const TimeStep &tp, int &)
	Dumps all registered fields for each plane.

bool	serialize (std::map< std::string, std::string > &)
	Dummy method, no serialization support.

bool	deSerialize (const std::map< std::string, std::string > &)
	Dummy method, no deserialization support.

bool	solveStep (TimeStep &tp)
	Solves the nonlinear equations by Newton-Raphson iterations.

bool	setInitialConditions ()
	Sets the initial conditions.

void	initSystem ()
	Initialize the FEM system.

bool	read (const char *fileName) override
	Reads model data from the specified input file.

bool	parse (const tinyxml2::XMLElement *elem) override
	Parses a data section from an XML element.

template<class T >
void	registerDependency (SIMSemi3D< T > *sim, const std::string &name, short int nvc, const PatchVec &patches, char diffBasis=0, int component=0)
	Registers a dependency on a field from another SIM object.

size_t	getNoSpaceDim () const override
	Returns the spatial dimension of plane solvers.

size_t	getNoPlanes () const
	Returns the number of plane solvers.

PlaneSolver *	getPlane (size_t i)
	Returns a pointer to a given plane solver.

const std::vector< PlaneSolver * > &	getPlanes () const
	Returns a const reference to the plane solvers.

size_t	getStartContext () const
	Returns the context of the first plane on this process.

size_t	getProcsPerPlane () const
	Returns the number or processes participating in each planar solve.

int	getPlaneNodes (int plane) const
	Returns the number of FSI nodes for a plane.

char	getDirection () const
	Returns the (unoriented) normal direction of the planes.

VTF *	getVTF ()
	Dummy method.

void	setVTF (VTF *)
	Dummy method.

Vec3	getForce (int) const
	Dummy method.

const PatchVec &	getFEModel ()
	Dummy method.

void	setupDependencies ()
	Setup inter-SIM dependencies.

bool	updateALE ()
	Updating the grid in an ALE solver.

int	getLocalNode (int) const
	Dummy method.

int	getGlobalNode (int) const
	Dummy method.

int	getNoBasis () const
	Returns the number of bases in the model.

size_t	getNoSolutions () const
	Returns the number of solution vectors.

virtual bool	parse (char *keyWord, std::istream &is)
	Parses a data section from an input stream.

virtual bool	parse (const tinyxml2::XMLElement *elem)
	Parses a data section from an XML document.

virtual void	registerDependency (SIMdependency *sim, const std::string &name, short int nvc, const PatchVec &patches, char diffBasis=0, int component=1)
	Registers a dependency on a field from another SIM object.

virtual void	registerDependency (SIMdependency sim, const std::string &name, short int nvc, const PatchVec &patches, const int MADOF)
	Registers a dependency on a field from another SIM object.

virtual void	registerDependency (SIMdependency *sim, const std::string &name, short int nvc=1)
	Registers a dependency on a field from another SIM object.

Public Member Functions inherited from SIMadmin
virtual	~SIMadmin ()
	Empty destructor.

virtual bool	preprocessC (const IntVec &, bool, double=0.0)
	Performs some pre-processing tasks on the FE model.

const ProcessAdm &	getProcessAdm () const
	Returns the parallel process administrator.

int	getGlobalProcessID () const
	Returns the global process ID.

const std::string &	getHeading () const
	Returns the simulator heading.

void	setHeading (const std::string &heading)
	Defines the simulator heading.

void	printHeading (int &supStep) const
	Prints the heading of this simulator, if any, to IFEM::cout.

Public Member Functions inherited from XMLInputBase
bool	readXML (const char *fileName, bool verbose=true)
	Reads an XML input file.

bool	loadXML (const char *xml)
	Loads data from an XML-formatted text string.

Public Member Functions inherited from SIMdependency
virtual	~SIMdependency ()
	Empty destructor.

bool	fillField (const std::string &name, const std::vector< double > &values)
	Initializes the nodal vector of named field in this SIM.

virtual std::vector< double > *	getField (const std::string &name)
	Returns the nodal vector of named field in this SIM.

virtual const std::vector< double > *	getField (const std::string &name) const
	Returns the nodal vector of named field in this SIM.

const std::vector< double > *	getDependentField (const std::string &name) const
	Returns the nodal vector of named field in a dependent SIM.

ASMbase *	getDependentPatch (const std::string &name, int pindx) const
	Returns a spline patch associated with a dependent field.

void	registerField (const std::string &name, const std::vector< double > &vec)
	Registers a named field with associated nodal vector in this SIM.

virtual bool	hasIC (const std::string &) const
	Checks whether a named initial condition is present.

Protected Attributes
std::vector< PlaneSolver * >	m_planes
	Planar solvers.

Protected Attributes inherited from SIMadmin
ProcessAdm	adm
	Parallel administrator.

int	myPid
	Processor ID in parallel simulations.

int	nProc
	Number of processors in parallel simulations.

std::string	myHeading
	Heading written before reading the input file.

Private Attributes
size_t	startCtx
	Context for first plane on this process.

size_t	planes
	Total number of planes.

size_t	procs_per_plane
	Number of processes per plane.

int	output_plane
	Plane to print to screen for (-1 for all)

char	direction
	(Unoriented) normal direction of plane

std::string	log_files
	Log file prefix for planes.

std::vector< int >	planeNodes
	FSI nodes for all planes.

SetupProps	props
	Setup properties to configure planar solvers.

Additional Inherited Members
Public Attributes inherited from SIMadmin
SIMoptions &	opt
	Simulation control parameters.

Static Public Attributes inherited from SIMadmin
static int	msgLevel = 2
	Controls the console output amount during solving.

Protected Types inherited from SIMadmin
using	IntVec = std::vector< int >
	Convenience alias.

Protected Member Functions inherited from SIMadmin
	SIMadmin (const char *heading=nullptr)
	The default constructor initializes the process administrator.

	SIMadmin (SIMadmin &anotherSIM)
	Copy constructor.

Protected Member Functions inherited from XMLInputBase
const tinyxml2::XMLElement *	loadFile (tinyxml2::XMLDocument &doc, const char *fileName, bool verbose=false)
	Loads an XML input file into a tinyxml2::XMLDocument object.

virtual const char **	getPrioritizedTags () const
	Returns a list of prioritized XML-tags.

Protected Member Functions inherited from SIMdependency
	SIMdependency ()
	The constructor is protected to allow sub-class instances only.

bool	extractPatchDependencies (IntegrandBase *problem, const PatchVec &model, size_t pindx) const
	Extracts local solution vector(s) for all dependent fields.

Detailed Description

template<class PlaneSolver>
class SIMSemi3D< PlaneSolver >

Driver class for plane-decoupled 3D problems.

Member Function Documentation

◆ getName()

template<class PlaneSolver >

std::string SIMSemi3D< PlaneSolver >::getName ( ) const

inlineoverridevirtual

Returns the name of this simulator (for use in the HDF5 export).

Implements SIMdependency.

◆ getNoSpaceDim()

template<class PlaneSolver >

size_t SIMSemi3D< PlaneSolver >::getNoSpaceDim ( ) const

inlineoverridevirtual

Returns the spatial dimension of plane solvers.

Implements SIMdependency.

◆ parse() [1/3]

template<class PlaneSolver >

bool SIMadmin::parse	(	char *	keyWord,
		std::istream &	is
	)

virtual

Parses a data section from an input stream.

Reimplemented from SIMadmin.

◆ parse() [2/3]

template<class PlaneSolver >

bool SIMadmin::parse ( const tinyxml2::XMLElement * elem )

virtual

Parses a data section from an XML document.

Reimplemented from SIMadmin.

◆ parse() [3/3]

template<class PlaneSolver >

bool SIMSemi3D< PlaneSolver >::parse ( const tinyxml2::XMLElement * elem )

inlineoverridevirtual

Parses a data section from an XML element.

Parameters

[in] elem The XML element to parse

Reimplemented from SIMadmin.

References IFEM::cout, SIMSemi3D< PlaneSolver >::direction, utl::getAttribute(), SIMSemi3D< PlaneSolver >::log_files, SIMadmin::nProc, SIMadmin::opt, SIMSemi3D< PlaneSolver >::output_plane, SIMoptions::parseOutputTag(), SIMSemi3D< PlaneSolver >::planes, and SIMSemi3D< PlaneSolver >::procs_per_plane.

◆ preprocess()

template<class PlaneSolver >

bool SIMSemi3D< PlaneSolver >::preprocess	(	const std::vector< int > &	= `{}`,
		bool	= `false`
	)

inlineoverridevirtual

Performs some pre-processing tasks on the FE model.

Reimplemented from SIMadmin.

◆ read()

template<class PlaneSolver >

bool SIMSemi3D< PlaneSolver >::read ( const char * fileName )

inlineoverridevirtual

Reads model data from the specified input file.

Parameters

[in] fileName Name of input file to read data from

Reimplemented from SIMadmin.

References SIMSemi3D< PlaneSolver >::log_files, SIMSemi3D< PlaneSolver >::m_planes, SIMadmin::myPid, SIMadmin::nProc, SIMSemi3D< PlaneSolver >::output_plane, plane_log_files, SIMSemi3D< PlaneSolver >::planes, SIMSemi3D< PlaneSolver >::procs_per_plane, SIMSemi3D< PlaneSolver >::props, SIMadmin::read(), and SIMSemi3D< PlaneSolver >::startCtx.

Referenced by SolverConfigurator< SIMSemi3D< PlaneSolver > >::setup().

◆ registerDependency() [1/4]

template<class PlaneSolver >

void SIMdependency::registerDependency	(	SIMdependency *	sim,
		const std::string &	name,
		short int	nvc,
		const PatchVec &	patches,
		char	diffBasis = `0`,
		int	component = `1`
	)

virtual

Registers a dependency on a field from another SIM object.

Parameters

[in]	sim	The SIM object holding the field we depend on
[in]	name	Name of field we depend on
[in]	nvc	Number of components in field
[in]	patches	The geometry the field is defined over
[in]	diffBasis	If non-null, use diffBasis base from patch vector
[in]	component	Component to use from field

Reimplemented from SIMdependency.

◆ registerDependency() [2/4]

template<class PlaneSolver >

void SIMdependency::registerDependency	(	SIMdependency *	sim,
		const std::string &	name,
		short int	nvc,
		const PatchVec &	patches,
		const int *	MADOF
	)

virtual

Registers a dependency on a field from another SIM object.

Parameters

[in]	sim	The SIM object holding the field we depend on
[in]	name	Name of field we depend on
[in]	nvc	Number of components in field
[in]	patches	The geometry the field is defined over
[in]	MADOF	The MADOF array to associate with this field

Reimplemented from SIMdependency.

◆ registerDependency() [3/4]

template<class PlaneSolver >

void SIMdependency::registerDependency	(	SIMdependency *	sim,
		const std::string &	name,
		short int	nvc = `1`
	)

virtual

Registers a dependency on a field from another SIM object.

Parameters

[in]	sim	The SIM object holding the field we depend on
[in]	name	Name of field we depend on
[in]	nvc	Number of components in field

Reimplemented from SIMdependency.

◆ registerDependency() [4/4]

template<class PlaneSolver >

template<class T >

void SIMSemi3D< PlaneSolver >::registerDependency	(	SIMSemi3D< T > *	sim,
		const std::string &	name,
		short int	nvc,
		const PatchVec &	patches,
		char	diffBasis = `0`,
		int	component = `0`
	)

inline

Registers a dependency on a field from another SIM object.

Parameters

[in]	sim	The SIM object holding the field we depend on
[in]	name	Name of field we depend on
[in]	nvc	Number of components in field
[in]	patches	The geometry the field is defined over
[in]	diffBasis	Different basis for the SIM class and the field
[in]	component	Component to use from field

References SIMSemi3D< PlaneSolver >::getPlane(), and SIMSemi3D< PlaneSolver >::m_planes.

The documentation for this class was generated from the following file:

/home/runner/work/IFEM-2/IFEM-2/Apps/Utils/SIMSemi3D.h

Public Types

Public Member Functions

Protected Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getName()

◆ getNoSpaceDim()

◆ parse() [1/3]

◆ parse() [2/3]

◆ parse() [3/3]

◆ preprocess()

◆ read()

◆ registerDependency() [1/4]

◆ registerDependency() [2/4]

◆ registerDependency() [3/4]

◆ registerDependency() [4/4]
