Class representing the element matrices for a dynamic FEM problem based on Newmark time integration. More...

#include <NewmarkMats.h>

Inheritance diagram for NewmarkMats:

[legend]

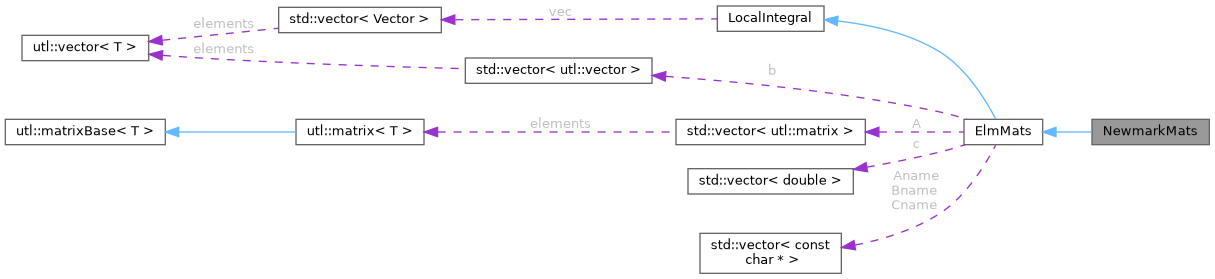

Collaboration diagram for NewmarkMats:

[legend]

Public Member Functions
	NewmarkMats (double a1, double a2, double b=0.0, double c=0.0, bool generalizedAlpha=false)
	The constructor initializes the time integration parameters.

virtual	~NewmarkMats ()
	Empty destructor.

virtual void	setStepSize (double dt, int it)
	Updates the time step size and the isPredictor flag.

virtual const Matrix &	getNewtonMatrix () const
	Returns the element-level Newton matrix.

virtual const Vector &	getRHSVector () const
	Returns the element-level right-hand-side vector.

const Vector &	dis (bool prev=false) const
	Returns a const reference to current/previous displacement vector.

const Vector &	vel (bool prev=false) const
	Returns a const reference to current/previous velocity vector.

const Vector &	acc (bool prev=false) const
	Returns a const reference to current/previous velocity vector.

Public Member Functions inherited from ElmMats
	ElmMats (bool lhs=true)
	Default constructor.

virtual	~ElmMats ()
	Empty destructor.

void	resize (size_t nA, size_t nB, size_t nC=0)
	Defines the number of element matrices and vectors.

void	redim (size_t ndim)
	Sets the dimension of the element matrices and vectors.

virtual bool	empty () const
	Checks if the element matrices are empty.

void	printMat (std::ostream &os, size_t idx=0, const char *prefix=nullptr) const
	Prints element matrix idx to output stream os.

void	printVec (std::ostream &os, size_t idx=0, const char *prefix=nullptr) const
	Prints element vector idx to output stream os.

void	printScl (std::ostream &os, size_t idx=0, const char *prefix=nullptr) const
	Prints element scalar idx to output stream os.

Public Member Functions inherited from LocalIntegral
virtual	~LocalIntegral ()
	Empty destructor.

virtual void	destruct ()
	Virtual destruction method to clean up after numerical integration.

virtual const LocalIntegral *	ref () const
	Returns the LocalIntegral object to assemble into the global one.

void	getSolution (size_t nsd, size_t nen, Matrix u=nullptr, Matrix v=nullptr, Matrix *a=nullptr, bool forceCurrent=false) const
	Extracts element solution vectors as nsd by nen matrices.

Protected Attributes
bool	isPredictor
	If true, we are in the predictor step.

double	h
	Time step size.

double	alpha1
	Mass-proportional damping coefficient.

double	alpha2
	Stiffness-proportional damping coefficient.

double	beta
	Newmark time integration parameter, β.

double	gamma
	Newmark time integration parameter, γ.

Private Attributes
double	alpha_m
	Generalized-alpha parameter, α_m

double	alpha_f
	Generalized-alpha parameter, α_f

bool	slvDisp
	If true, solve for displacement increments.

Additional Inherited Members
Public Attributes inherited from ElmMats
std::vector< Matrix >	A
	The element coefficient matrices.

std::vector< Vector >	b
	The element right-hand-side vectors.

std::vector< double >	c
	The scalar quantities.

std::vector< const char * >	Aname
	Matrix names (for debug print)

std::vector< const char * >	Bname
	Vector names (for debug print)

std::vector< const char * >	Cname
	Scalar names (for debug print)

bool	rhsOnly
	If true, only the right-hand-sides are assembled.

bool	withLHS
	If true, left-hand-side element matrices are present.

Public Attributes inherited from LocalIntegral
Vectors	vec
	Element-level primary solution vectors.

Protected Member Functions inherited from LocalIntegral
	LocalIntegral ()
	The default constructor is protected to allow sub-classes only.

Detailed Description

Class representing the element matrices for a dynamic FEM problem based on Newmark time integration.

Constructor & Destructor Documentation

◆ NewmarkMats()

NewmarkMats::NewmarkMats	(	double	a1,
		double	a2,
		double	b = `0.0`,
		double	c = `0.0`,
		bool	generalizedAlpha = `false`
	)

The constructor initializes the time integration parameters.

Parameters

[in]	a1	Mass-proportional damping coefficient
[in]	a2	Stiffness-proportional damping coefficient
[in]	b	Time integration parameter
[in]	c	Time integration parameter
[in]	generalizedAlpha	If true, interpret b and c as the generalized-alpha parameters α_m and α_f, respectively, otherwise as β and γ, respectively

References alpha1, alpha2, alpha_f, alpha_m, ElmMats::b, beta, ElmMats::c, gamma, and slvDisp.

Member Function Documentation

◆ getNewtonMatrix()

const Matrix & NewmarkMats::getNewtonMatrix ( ) const

virtual

Returns the element-level Newton matrix.

Reimplemented from ElmMats.

Reimplemented in HHTMats.

References ElmMats::A, utl::matrix< T >::add(), alpha1, alpha2, alpha_f, alpha_m, beta, ElmMats::empty(), utl::matrix< T >::fill(), gamma, ElmMats::getNewtonMatrix(), h, utl::matrix< T >::multiply(), and slvDisp.

◆ getRHSVector()

const Vector & NewmarkMats::getRHSVector ( ) const

virtual

Returns the element-level right-hand-side vector.

Reimplemented from ElmMats.

Reimplemented in HHTMats.

References ElmMats::A, acc(), utl::vector< T >::add(), alpha1, alpha2, ElmMats::b, dis(), ElmMats::getRHSVector(), ElmMats::printVec(), LocalIntegral::vec, and vel().

◆ setStepSize()

virtual void NewmarkMats::setStepSize	(	double	dt,
		int	it
	)

inlinevirtual

Updates the time step size and the isPredictor flag.

Parameters

[in]	dt	New time step size
[in]	it	Newton-Raphson iteration counter

Reimplemented from ElmMats.

References h, and isPredictor.

The documentation for this class was generated from the following files:

/home/runner/work/IFEM-2/IFEM-2/src/ASM/NewmarkMats.h
/home/runner/work/IFEM-2/IFEM-2/src/ASM/NewmarkMats.C
