LocalIntegral Class Reference

Abstract base class representing an element level integrated quantity. More...

#include <LocalIntegral.h>

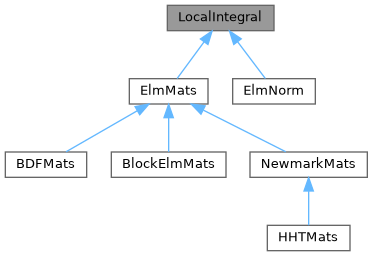

Inheritance diagram for LocalIntegral:

Collaboration diagram for LocalIntegral:

Public Member Functions
virtual	~LocalIntegral ()
	Empty destructor.
virtual void	destruct ()
	Virtual destruction method to clean up after numerical integration.
virtual const LocalIntegral *	ref () const
	Returns the LocalIntegral object to assemble into the global one.
void	getSolution (size_t nsd, size_t nen, Matrix *u=nullptr, Matrix *v=nullptr, Matrix *a=nullptr, bool forceCurrent=false) const
	Extracts element solution vectors as nsd by nen matrices.

Public Attributes
Vectors	vec
	Element-level primary solution vectors.

Protected Member Functions
	LocalIntegral ()
	The default constructor is protected to allow sub-classes only.

Detailed Description

Abstract base class representing an element level integrated quantity.

Member Function Documentation

destruct()

virtual void LocalIntegral::destruct ( )

inlinevirtual

Virtual destruction method to clean up after numerical integration.

Reimplemented in ElmNorm.

Referenced by ASMstruct::diracPoint(), ASMu2D::diracPoint(), ASMu3D::diracPoint(), ASMs1D::integrate(), ASMs1DLag::integrate(), ASMs1DSpec::integrate(), ASMs2D::integrate(), ASMs2Dmx::integrate(), ASMs2DmxLag::integrate(), ASMs2DSpec::integrate(), ASMs2DTri::integrate(), ASMs3D::integrate(), ASMs3DLag::integrate(), ASMs3Dmx::integrate(), ASMs3DmxLag::integrate(), ASMs3DSpec::integrate(), ASMu2D::integrate(), ASMu2Dmx::integrate(), ASMu3D::integrate(), ASMu3Dmx::integrate(), ASMs2D::integrate(), ASMs2Dmx::integrate(), ASMs3Dmx::integrate(), ASMu2D::integrate(), ASMu2Dmx::integrate(), ASMs2D::integrate(), ASMs3D::integrate(), ASMu2D::integrate(), ASMs1D::integrate(), ASMs1DLag::integrate(), ASMs2D::integrate(), ASMs2DLag::integrate(), ASMs2Dmx::integrate(), ASMs2DmxLag::integrate(), ASMs2DSpec::integrate(), ASMs2DTri::integrate(), ASMs3D::integrate(), ASMs3DLag::integrate(), ASMs3Dmx::integrate(), ASMs3DmxLag::integrate(), ASMs3DSpec::integrate(), ASMu2D::integrate(), ASMu2Dmx::integrate(), ASMu3D::integrate(), ASMu3Dmx::integrate(), ASMs3D::integrateEdge(), ASMs3DLag::integrateEdge(), and ASMs2DLag::integrateElm().

getSolution()

void LocalIntegral::getSolution ( size_t  nsd, size_t  nen, Matrix *  u = nullptr, Matrix *  v = nullptr, Matrix *  a = nullptr, bool  forceCurrent = false  ) const

inline

Extracts element solution vectors as nsd by nen matrices.

Parameters

[in]	nsd	Number of space dimensions
[in]	nen	Number of element nodes
[out]	u	First element solution vector (deformation)
[out]	v	Second element solution vector (velocity)
[out]	a	Third element solution vector (acceleration)
[in]	forceCurrent	If true, return the current values also if previous values are present

This method is intended for extraction of element-level solution vectors (deformation, velocity and acceleration for dynamics problems) on a matrix form, such that equivalent integration point values can be obtained by multiplying with the basis function value vector, fe.N. If the size of vec is 6 or more and forceCurrent is false, the previous values stored in positions {3,4,5} are returned, otherwise the current values stored in positions {0,1,2} are returned.

References vec.

Referenced by ASMs2DLag::integrate(), and ASMs2DLag::integrateElm().

---

The documentation for this class was generated from the following file:

• /home/runner/work/IFEM-2/IFEM-2/src/ASM/LocalIntegral.h
