A vector-valued spatial function, chebyshev polynomials. More...
#include <Chebyshev.h>
Inheritance diagram for ChebyshevVecFunc:

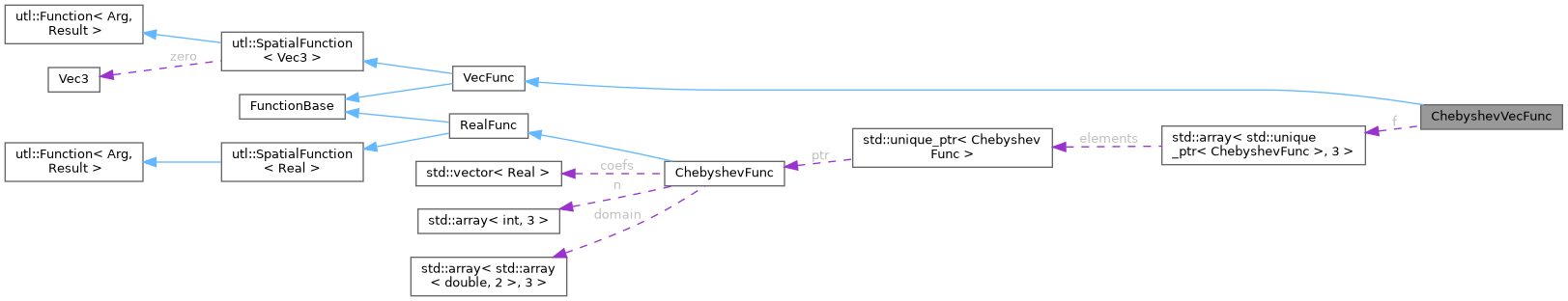

Collaboration diagram for ChebyshevVecFunc:
Public Member Functions | |
| ChebyshevVecFunc (const std::vector< std::string > &input, bool file) | |
| The constructor initializes the function parameters from files. | |
| bool | isZero () const override |
| Returns whether the function is identically zero or not. | |
 Public Member Functions inherited from VecFunc | |
| unsigned char | getType () const override |
| Returns the function type flag. | |
| std::vector< Real > | getValue (const Vec3 &X) const override |
| Returns the function value as an array. | |
| Real | getScalarValue (const Vec3 &X) const override |
| Returns a representative scalar equivalent of the function value. | |
| Tensor | gradient (const Vec3 &X) const |
| Evaluates first derivatives of the function. | |
| utl::matrix3d< Real > | hessian (const Vec3 &X) const |
| Evaluates second derivatives of the function. | |
| Vec3 | timeDerivative (const Vec3 &X) const |
| Evaluates time derivatives of the function. | |
| Public Member Functions inherited from utl::SpatialFunction< Vec3 > | |
| virtual Vec3 | deriv (const Vec3 &, int) const |
| Returns a first-derivative of the function. | |
| virtual Vec3 | dderiv (const Vec3 &, int, int) const |
| Returns a second-derivative of the function. | |
| Public Member Functions inherited from utl::Function< Arg, Result > | |
| virtual | ~Function () |
| Empty destructor. | |
| virtual bool | isConstant () const |
| Returns whether the function is time-independent or not. | |
| Result | operator() (const Arg &x) const |
| Operator returning the function value for the given argument. | |
| Public Member Functions inherited from FunctionBase | |
| virtual | ~FunctionBase () |
| Empty destructor. | |
| size_t | dim () const |
| Returns the number of components of the return value. | |
| virtual bool | initPatch (size_t) |
| Sets the active patch. | |
| virtual bool | inDomain (const Vec3 &) const |
| Checks if a specified point is within the function domain. | |
| virtual void | setParam (const std::string &, Real) |
| Sets an additional parameter in the function. | |
| void | setParam (const std::string &name, const Vec3 &value) |
| Sets additional parameter values in the function. | |
Protected Member Functions | |
| Vec3 | evaluate (const Vec3 &X) const override |
| Evaluates the function at point X. | |
| std::vector< Real > | evalGradient (const Vec3 &) const override |
| Returns the gradient of the function as a 1D array. | |
| std::vector< Real > | evalHessian (const Vec3 &X) const override |
| Returns the hessian of the function as a 1D array. | |
| Protected Member Functions inherited from VecFunc | |
| VecFunc (size_t n=3) | |
| The constructor is protected to allow sub-class instances only. | |
| Protected Member Functions inherited from utl::SpatialFunction< Vec3 > | |
| SpatialFunction (const Vec3 &val) | |
| The constructor is protected to allow sub-class instances only. | |
| virtual std::vector< Real > | evalTimeDerivative (const Vec3 &) const |
| Returns the time derivatives of the function as a 1D array. | |
| Protected Member Functions inherited from utl::Function< Arg, Result > | |
| Function () | |
| The constructor is protected to allow sub-class instances only. | |
| virtual Result | evaluate (const Arg &x) const =0 |
| Evaluates the function for the argument x. | |
| Protected Member Functions inherited from FunctionBase | |
| FunctionBase () | |
| The constructor is protected to allow sub-class instances only. | |
Private Attributes | |
| std::array< std::unique_ptr< ChebyshevFunc >, 3 > | f |
| Functions. | |
Additional Inherited Members | |
| Public Types inherited from utl::Function< Arg, Result > | |
| typedef Arg | Input |
| Input type. | |
| typedef Result | Output |
| Output type. | |
| Protected Attributes inherited from utl::SpatialFunction< Vec3 > | |
| Vec3 | zero |
| Return value for default implementations of derivatives. | |
| Protected Attributes inherited from FunctionBase | |
| size_t | ncmp |
| Number of components in the return value. | |
Detailed Description
A vector-valued spatial function, chebyshev polynomials.
Constructor & Destructor Documentation
◆ ChebyshevVecFunc()
| ChebyshevVecFunc::ChebyshevVecFunc | ( | const std::vector< std::string > & | input, |
| bool | file | ||
| ) |
The constructor initializes the function parameters from files.
- Parameters
-
[in] input Name of files or strings to read coefs from [in] file True if input is file names
References f, and FunctionBase::ncmp.
Member Function Documentation
◆ evalGradient()
Returns the gradient of the function as a 1D array.
Reimplemented from utl::SpatialFunction< Vec3 >.
References f, and FunctionBase::ncmp.
◆ evalHessian()
Returns the hessian of the function as a 1D array.
Reimplemented from utl::SpatialFunction< Vec3 >.
References f, and FunctionBase::ncmp.
◆ isZero()
|
inlineoverridevirtual |
Returns whether the function is identically zero or not.
Reimplemented from utl::Function< Arg, Result >.
References f.
The documentation for this class was generated from the following files:
- /home/runner/work/IFEM-2/IFEM-2/src/Utility/Chebyshev.h
- /home/runner/work/IFEM-2/IFEM-2/src/Utility/Chebyshev.C
