A scalar-valued spatial function, chebyshev polynomials. More...

#include <Chebyshev.h>

Inheritance diagram for ChebyshevFunc:

[legend]

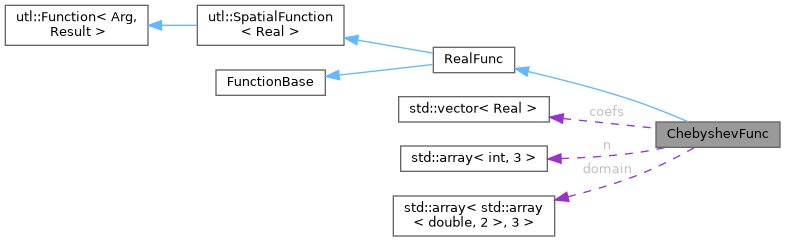

Collaboration diagram for ChebyshevFunc:

[legend]

Classes
struct	Func
	Struct defining function and weight in one direction. More...

Public Member Functions
	ChebyshevFunc (const std::string &input, bool file)
	The constructor initializes the function parameters from a file.

bool	isZero () const override
	Returns whether the function is identically zero or not.

const std::vector< Real > &	getCoefs () const
	Returns a const reference to the coefficients.

const std::array< int, 3 > &	getSize () const
	Returns the number of polynomials in each parameter direction.

Real	deriv (const Vec3 &X, int c) const override
	Returns a first-derivative of the function.

Real	dderiv (const Vec3 &X, int c, int c2) const override
	Returns a second-derivative of the function.

Public Member Functions inherited from RealFunc
unsigned char	getType () const override
	Returns the function type flag.

std::vector< Real >	getValue (const Vec3 &X) const override
	Returns the function value as an array.

virtual Vec3	gradient (const Vec3 &X) const
	Evaluates first derivatives of the function.

virtual SymmTensor	hessian (const Vec3 &X) const
	Evaluates second derivatives of the function.

Real	getScalarValue (const Vec3 &X) const override
	Returns a representative scalar equivalent of the function value.

Real	timeDerivative (const Vec3 &X) const
	Returns the time derivative of the function.

Public Member Functions inherited from utl::Function< Arg, Result >
virtual	~Function ()
	Empty destructor.

virtual bool	isConstant () const
	Returns whether the function is time-independent or not.

Result	operator() (const Arg &x) const
	Operator returning the function value for the given argument.

Public Member Functions inherited from FunctionBase
virtual	~FunctionBase ()
	Empty destructor.

size_t	dim () const
	Returns the number of components of the return value.

virtual bool	initPatch (size_t)
	Sets the active patch.

virtual bool	inDomain (const Vec3 &) const
	Checks if a specified point is within the function domain.

virtual void	setParam (const std::string &, Real)
	Sets an additional parameter in the function.

void	setParam (const std::string &name, const Vec3 &value)
	Sets additional parameter values in the function.

Protected Member Functions
Real	evaluate (const Vec3 &X) const override
	Evaluates the function at point X.

Protected Member Functions inherited from RealFunc
	RealFunc ()
	The constructor is protected to allow sub-class instances only.

Protected Member Functions inherited from utl::SpatialFunction< Real >
	SpatialFunction (const Real &val)
	The constructor is protected to allow sub-class instances only.

virtual std::vector< Real >	evalGradient (const Vec3 &) const
	Returns the gradient of the function as a 1D array.

virtual std::vector< Real >	evalHessian (const Vec3 &) const
	Returns the hessian of the function as a 1D array.

virtual std::vector< Real >	evalTimeDerivative (const Vec3 &) const
	Returns the time derivatives of the function as a 1D array.

Protected Member Functions inherited from utl::Function< Arg, Result >
	Function ()
	The constructor is protected to allow sub-class instances only.

virtual Result	evaluate (const Arg &x) const =0
	Evaluates the function for the argument x.

Protected Member Functions inherited from FunctionBase
	FunctionBase ()
	The constructor is protected to allow sub-class instances only.

Private Member Functions
Real	evaluateTP (const Vec3 &X, const std::array< Func, 3 > &funcs) const
	Performs the actual tensor-product evaluation.

void	read (std::istream &in)
	Reads input from a stream.

Private Attributes
std::vector< Real >	coefs
	Function coefficients.

std::array< int, 3 >	n
	Number of coefficients.

std::array< std::array< double, 2 >, 3 >	domain
	Physical domain.

Additional Inherited Members
Public Types inherited from utl::Function< Arg, Result >
typedef Arg	Input
	Input type.

typedef Result	Output
	Output type.

Protected Attributes inherited from utl::SpatialFunction< Real >
Real	zero
	Return value for default implementations of derivatives.

Protected Attributes inherited from FunctionBase
size_t	ncmp
	Number of components in the return value.

Detailed Description

A scalar-valued spatial function, chebyshev polynomials.

Constructor & Destructor Documentation

◆ ChebyshevFunc()

ChebyshevFunc::ChebyshevFunc	(	const std::string &	input,
		bool	file
	)

The constructor initializes the function parameters from a file.

Parameters

[in]	input	Name of file or string to read coefs from
[in]	file	True if input is a file name

References n, and read().

Member Function Documentation

◆ dderiv()

Real ChebyshevFunc::dderiv	(	const Vec3 &	X,
		int	c,
		int	c2
	)		const

overridevirtual

Returns a second-derivative of the function.

Reimplemented from utl::SpatialFunction< Real >.

References domain, Chebyshev::eval2Der1(), Chebyshev::evalDer1(), Chebyshev::evalPol1(), evaluateTP(), and n.

◆ deriv()

Real ChebyshevFunc::deriv	(	const Vec3 &	X,
		int	c
	)		const

overridevirtual

Returns a first-derivative of the function.

Reimplemented from utl::SpatialFunction< Real >.

References domain, Chebyshev::evalDer1(), Chebyshev::evalPol1(), evaluateTP(), and n.

◆ isZero()

bool ChebyshevFunc::isZero ( ) const

inlineoverridevirtual

Returns whether the function is identically zero or not.

Reimplemented from utl::Function< Arg, Result >.

References coefs.

◆ read()

void ChebyshevFunc::read ( std::istream & in )

private

Reads input from a stream.

Parameters

in	Stream to read from

References coefs, domain, and n.

Referenced by ChebyshevFunc().

The documentation for this class was generated from the following files:

/home/runner/work/IFEM-2/IFEM-2/src/Utility/Chebyshev.h
/home/runner/work/IFEM-2/IFEM-2/src/Utility/Chebyshev.C
