Class for storage of general algebraic system of equations. More...

#include <AlgEqSystem.h>

Inheritance diagram for AlgEqSystem:

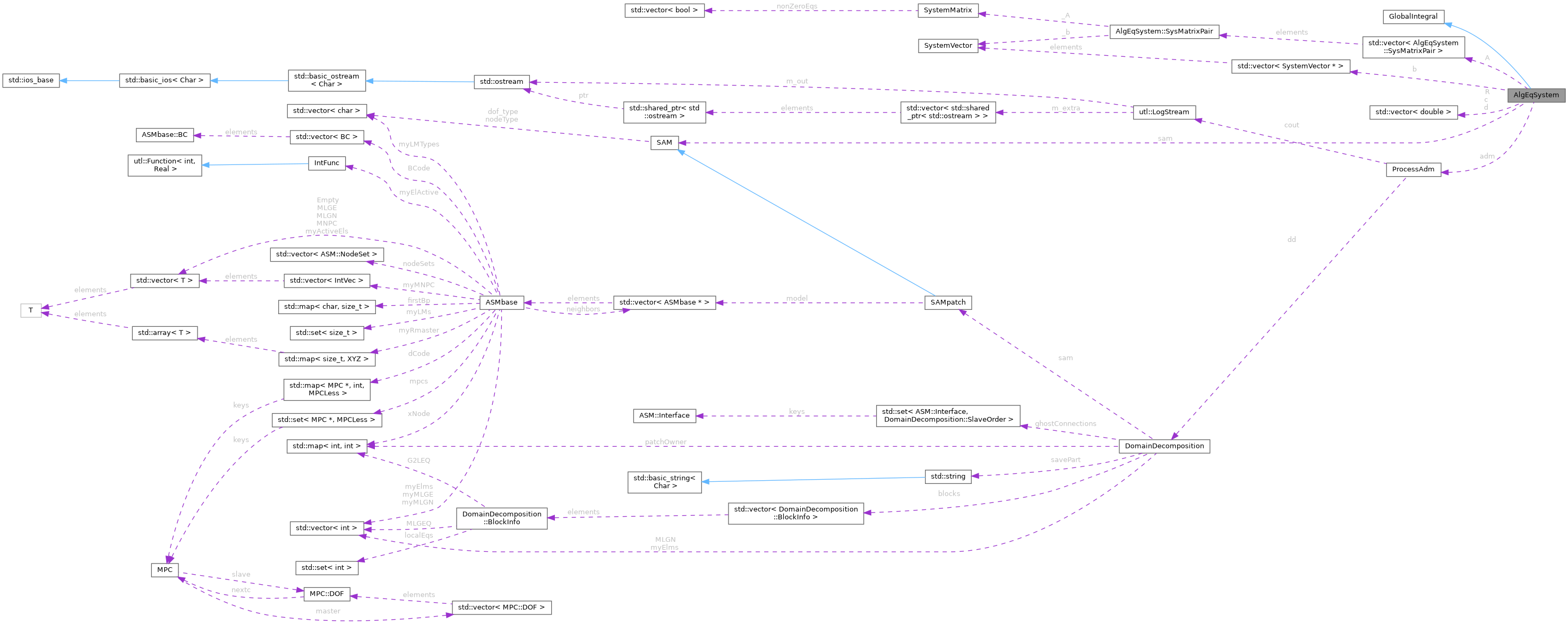

Collaboration diagram for AlgEqSystem:

[legend]

Classes
struct	SysMatrixPair
	Struct defining a coefficient matrix and an associated RHS-vector. More...

Public Member Functions
	AlgEqSystem (const SAM &s, const ProcessAdm *a=nullptr)
	The constructor sets its reference to SAM and ProcessAdm objects.

	AlgEqSystem (const AlgEqSystem &a)
	Copy constructor.

virtual	~AlgEqSystem ()
	The destructor frees the dynamically allocated objects.

AlgEqSystem &	operator= (const AlgEqSystem &s)
	Assignment operator.

AlgEqSystem &	copy (const AlgEqSystem &that)
	Makes this a copy of that*.

AlgEqSystem &	add (const AlgEqSystem &that)
	Adds that to *this (assuming similar structure).

bool	init (LinAlg::MatrixType mtype, const LinSolParams *spar=nullptr, size_t nmat=1, size_t nvec=1, size_t nscl=0, bool reactions=false, int num_threads_SLU=1, bool forcePreAss=false)
	Allocates the system matrices of the specified format.

void	clear ()
	Erases the system matrices and frees dynamically allocated storage.

bool	setAssociatedVector (size_t imat, size_t ivec)
	Associates a system vector to a system matrix.

virtual void	initialize (char initLHS)
	Initializes the system matrices to zero.

virtual bool	finalize (bool newLHS)
	Finalizes the system matrices after element assembly.

virtual bool	assemble (const LocalIntegral *elmObj, int elmId)
	Adds a set of element matrices into the algebraic equation system.

size_t	getNoRHS () const
	Returns the number of right-hand-side vectors allocated.

const SAM &	getSAM () const
	Returns a const reference to the SAM object.

SystemMatrix *	getMatrix (size_t i=0)
	Returns the i'th matrix of the equation system.

SystemVector *	getVector (size_t i=0)
	Returns the i'th right-hand-side vector of the equation system.

double	getScalar (size_t i=0)
	Returns the i'th scalar quantity.

void	addScalar (double s, size_t i=0)
	Adds the value s to the i'th scalar quantity.

const std::vector< double > &	getScalars () const
	Returns a const reference to the assembled scalars.

const std::vector< double > *	getReactions () const
	Returns a pointer to the nodal reaction forces, if any.

bool	staticCondensation (Matrix &Ared, Vector &bred, const std::vector< int > &extNodes, size_t imat=0, const char *recmatFile=nullptr) const
	Performs static condensation of the indicated equation system.

bool	recoverInternals (const Matrix &Rmat, const std::vector< int > &extNodes, const Vector &xe, Vector &xFull) const
	Performs recovery of internal DOF values from the external DOFs.

Public Member Functions inherited from GlobalIntegral
	GlobalIntegral ()
	The default constructor.

virtual	~GlobalIntegral ()
	Empty destructor.

virtual bool	threadSafe () const
	Returns true if all elements can be assembled in parallel.

virtual bool	haveContributions (size_t, const std::vector< Property > &) const
	Returns false if no contributions from a specified patch.

Static Public Member Functions
static bool	readRecoveryMatrix (Matrix &Rmat, const char *recmatFile)
	Reads the recovery matrix from file.

Private Attributes
std::vector< SysMatrixPair >	A
	The actual coefficient matrices.

std::vector< SystemVector * >	b
	The actual right-hand-side vectors.

std::vector< double >	c
	Global scalar quantities.

std::vector< double > *	d
	Multithreading buffer for the scalar values.

std::vector< double >	R
	Nodal reaction forces.

const SAM &	sam
	Data for FE assembly management.

const ProcessAdm *	adm
	Parallel process administrator.

Detailed Description

Class for storage of general algebraic system of equations.

Member Function Documentation

◆ assemble()

bool AlgEqSystem::assemble	(	const LocalIntegral *	elmObj,
		int	elmId
	)

virtual

Adds a set of element matrices into the algebraic equation system.

Parameters

[in]	elmObj	Pointer to the element matrices to add into *this
[in]	elmId	Global number of the element associated with *elmObj

Reimplemented from GlobalIntegral.

References A, ElmMats::A, SAM::assembleSystem(), b, ElmMats::b, c, ElmMats::c, d, ElmMats::empty(), ElmMats::getNewtonMatrix(), ElmMats::getRHSVector(), ElmMats::printMat(), ElmMats::printScl(), ElmMats::printVec(), R, ElmMats::rhsOnly, sam, and ElmMats::withLHS.

Referenced by SIMmodal::assembleModalSystem().

◆ finalize()

bool AlgEqSystem::finalize ( bool newLHS )

virtual

Finalizes the system matrices after element assembly.

Parameters

[in] newLHS If false, only right-hand-side vectors was assembled

Reimplemented from GlobalIntegral.

References A, b, c, d, SAM::expandSolution(), SAM::printVector(), and sam.

Referenced by SIMmodal::assembleModalSystem(), and SIMbase::assembleSystem().

◆ init()

bool AlgEqSystem::init	(	LinAlg::MatrixType	mtype,
		const LinSolParams *	spar = `nullptr`,
		size_t	nmat = `1`,
		size_t	nvec = `1`,
		size_t	nscl = `0`,
		bool	reactions = `false`,
		int	num_threads_SLU = `1`,
		bool	forcePreAss = `false`
	)

Allocates the system matrices of the specified format.

Parameters

[in]	mtype	The matrix format to use for all matrices
[in]	spar	Input parameters for the linear equation solver
[in]	nmat	Number of system matrices to allocate
[in]	nvec	Number of system vectors to allocate
[in]	nscl	Number of scalar quantities to allocate
[in]	reactions	If false, no reaction forces will be computed
[in]	num_threads_SLU	Number of threads for SuperLU_MT
[in]	forcePreAss	If true, force preassembly for sparse matrices

References A, adm, b, c, SystemMatrix::create(), SystemVector::create(), SAM::getNoEquations(), SAM::getNoSpecifiedDOFs(), PROFILE, R, and sam.

Referenced by SIMmodal::assembleModalSystem(), and SIMbase::initSystem().

◆ initialize()

void AlgEqSystem::initialize ( char initLHS )

virtual

Initializes the system matrices to zero.

Parameters

[in] initLHS If false, only initialize right-hand-side vectors

Reimplemented from GlobalIntegral.

References A, b, c, d, and R.

Referenced by SIMmodal::assembleModalSystem(), and SIMbase::assembleSystem().

◆ readRecoveryMatrix()

bool AlgEqSystem::readRecoveryMatrix	(	Matrix &	Rmat,
		const char *	recmatFile
	)

static

Reads the recovery matrix from file.

Parameters

[out]	Rmat	The recovery matrix, xi = Rmat*xe
[in]	recmatFile	Name of recovery matrix file

References c, utl::matrixBase< T >::ptr(), and utl::matrix< T >::resize().

◆ recoverInternals()

bool AlgEqSystem::recoverInternals	(	const Matrix &	Rmat,
		const std::vector< int > &	extNodes,
		const Vector &	xe,
		Vector &	xFull
	)		const

Performs recovery of internal DOF values from the external DOFs.

Parameters

[in]	Rmat	Recovery matrix
[in]	extNodes	List of external nodes whose DOFs were retained
[in]	xe	External DOF values
[out]	xFull	Expanded solution vector with all DOFs

References SAM::expandVector(), SAM::getNodeEqns(), SAM::getNoEquations(), utl::matrix< T >::multiply(), sam, and utl::vector< T >::size().

◆ setAssociatedVector()

bool AlgEqSystem::setAssociatedVector	(	size_t	imat,
		size_t	ivec
	)

Associates a system vector to a system matrix.

Parameters

[in]	imat	Index of a coefficient matrix
[in]	ivec	Index of the system vector to associate with the matrix

The purpose of this method is to define which right-hand-side vector (if any) should receive contributions when assembling a coefficient matrix, when the system to be assembled has explicit constraint equations for which the dependent DOFs have been eliminated.

References A, and b.

Referenced by SIMbase::setAssociatedRHS().

◆ staticCondensation()

bool AlgEqSystem::staticCondensation	(	Matrix &	Ared,
		Vector &	bred,
		const std::vector< int > &	extNodes,
		size_t	imat = `0`,
		const char *	recmatFile = `nullptr`
	)		const

Performs static condensation of the indicated equation system.

Parameters

[out]	Ared	Reduced System matrix
[out]	bred	Associated reduced right-hand-side vector
[in]	extNodes	List of external nodes whose DOFs to retain
[in]	imat	Index of the system matrix-vector pair to condensate
[in]	recmatFile	Name of recovery matrix file

References A, IFEM::cout, utl::matrix< T >::fillColumn(), SAM::getNodeEqns(), utl::vector< T >::ptr(), utl::matrix< T >::resize(), SparseMatrix::rows(), sam, and SparseMatrix::split().

The documentation for this class was generated from the following files:

/home/runner/work/IFEM-2/IFEM-2/src/ASM/AlgEqSystem.h
/home/runner/work/IFEM-2/IFEM-2/src/ASM/AlgEqSystem.C
