ASMunstruct Class Reference

Abstract interface for unstructured spline patches. More...

#include <ASMunstruct.h>

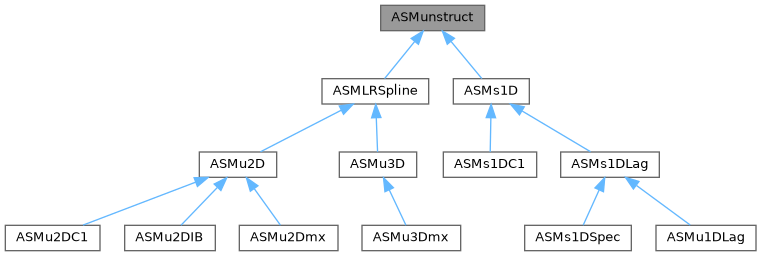

Inheritance diagram for ASMunstruct:

Public Member Functions
virtual	~ASMunstruct ()
	Empty destructor.
virtual bool	refine (const LR::RefineData &prm, Vectors &sol)=0
	Refines the mesh adaptively.
virtual void	remapErrors (RealArray &errors, const RealArray &orig, bool=false) const
	Remaps element-wise errors from geometry mesh to refinement mesh.
virtual IntVec	getBoundaryCovered (const IntSet &) const
	Returns all boundary functions that are covered by the given nodes.
virtual void	extendRefinementDomain (IntSet &, const IntSet &) const
	Extends the refinement domain with information for neighbors.
virtual Vec3	getElementCenter (int iel) const =0
	Returns the coordinates of the element center.
virtual void	storeMesh (const std::string &fName, int fType=15) const
	Stores the mesh basis to encapsulated postscript files.

Protected Member Functions
	ASMunstruct ()
	The constructor is protected to allow objects of sub-classes only.

Detailed Description

Abstract interface for unstructured spline patches.

Member Function Documentation

extendRefinementDomain()

virtual void ASMunstruct::extendRefinementDomain ( IntSet &  , const IntSet &    ) const

inlinevirtual

Extends the refinement domain with information for neighbors.

Reimplemented in ASMu2D, and ASMu3D.

getBoundaryCovered()

virtual IntVec ASMunstruct::getBoundaryCovered ( const IntSet &  ) const

inlinevirtual

Returns all boundary functions that are covered by the given nodes.

Reimplemented in ASMLRSpline.

getElementCenter()

virtual Vec3 ASMunstruct::getElementCenter ( int  iel ) const

pure virtual

Returns the coordinates of the element center.

Implemented in ASMs1D, ASMs1DLag, and ASMLRSpline.

refine()

virtual bool ASMunstruct::refine ( const LR::RefineData &  prm, Vectors &  sol  )

pure virtual

Refines the mesh adaptively.

Parameters

[in]	prm	Input data used to control the mesh refinement
	sol	Control point results values that are transferred to new mesh

Implemented in ASMs1D, ASMLRSpline, ASMu2D, ASMu2D, ASMu2Dmx, ASMu2Dmx, ASMu2Dmx, ASMu3D, ASMu3D, ASMu3Dmx, ASMu3Dmx, and ASMu3Dmx.

remapErrors()

virtual void ASMunstruct::remapErrors ( RealArray &  errors, const RealArray &  orig, bool  = false  ) const

inlinevirtual

Remaps element-wise errors from geometry mesh to refinement mesh.

Parameters

[out]	errors	The remapped errors
[in]	orig	The element-wise errors on the geometry mesh

Reimplemented in ASMu2D, ASMu2Dmx, ASMu3D, and ASMu3Dmx.

storeMesh()

virtual void ASMunstruct::storeMesh ( const std::string &  fName, int  fType = 15  ) const

inlinevirtual

Stores the mesh basis to encapsulated postscript files.

Parameters

[in]	fName	Prefix for file names
[in]	fType	Flag telling which file type(s) to write (15 means all)

Reimplemented in ASMu2D, and ASMu2Dmx.

---
