Base class for LR B-spline FE assembly drivers. More...

#include <ASMLRSpline.h>

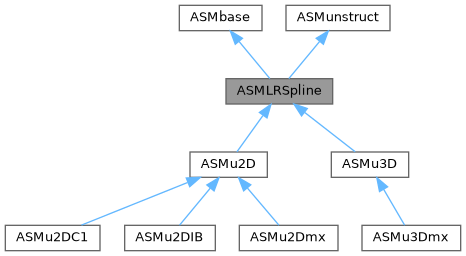

Inheritance diagram for ASMLRSpline:

[legend]

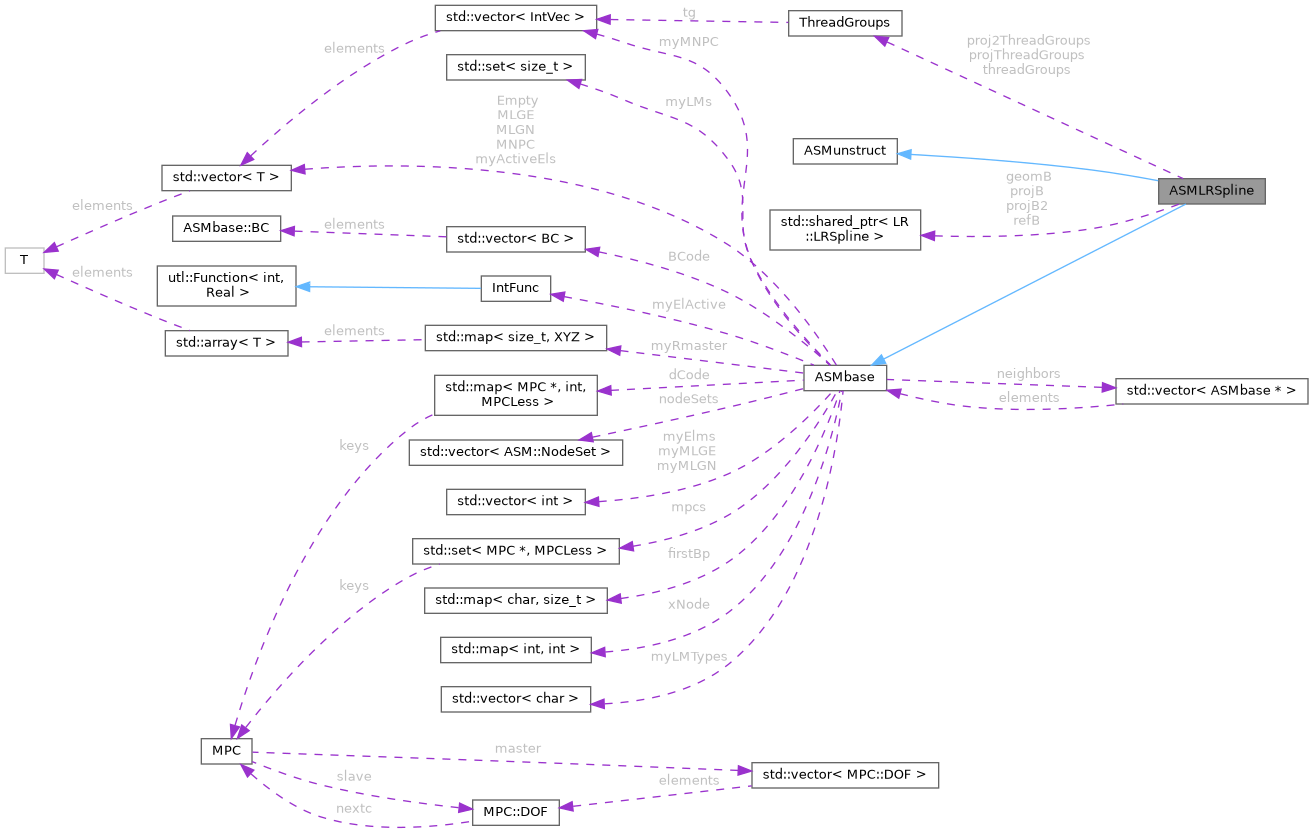

Collaboration diagram for ASMLRSpline:

[legend]

Public Member Functions
virtual	~ASMLRSpline ()
	Empty destructor.

virtual bool	empty () const
	Checks if the patch is empty.

virtual bool	getParameterDomain (Real2DMat &, IntVec *) const
	Returns parameter values and node numbers of the domain corners.

const LR::LRSpline *	getRefinementBasis () const
	Returns a const pointer to refinement basis.

virtual bool	refine (const LR::RefineData &prm, Vectors &sol)
	Refines the mesh adaptively.

virtual LR::LRSpline *	evalSolution (const IntegrandBase &integrand) const =0
	Projects the secondary solution field onto the primary basis.

IntVec	getFunctionsForElements (const IntVec &elements, bool globalId=false) const
	Returns a list of basis functions having support on given elements.

void	getFunctionsForElements (IntSet &functions, const IntVec &elements, bool globalId=true) const
	Returns a list of basis functions having support on given elements.

virtual IntVec	getBoundaryCovered (const IntSet &nodes) const
	Returns all boundary functions that are covered by the given nodes.

IntVec	getOverlappingNodes (const IntSet &nodes, int dir=7) const
	Returns all functions whose support overlap with the input nodes.

IntVec	getOverlappingNodes (int node, int dir=7) const
	Returns all functions whose support overlap with the input node.

virtual bool	transferGaussPtVars (const LR::LRSpline *oldBasis, const RealArray &oldVar, RealArray &newVar, int nGauss) const =0
	Transfers Gauss point variables from old basis to this patch.

virtual bool	transferGaussPtVarsN (const LR::LRSpline *oldBasis, const RealArray &oldVar, RealArray &newVar, int nGauss) const =0
	Transfers Gauss point variables from old basis to this patch.

virtual bool	transferCntrlPtVars (const LR::LRSpline *oldBasis, RealArray &newVar, int nGauss) const =0
	Transfers control point variables from old basis to this patch.

bool	transferCntrlPtVars (LR::LRSpline *oldBasis, const RealArray &oldVar, RealArray &newVar, int nGauss, int nf=1) const
	Transfers control point variables from old basis to this patch.

virtual std::pair< size_t, double >	findClosestNode (const Vec3 &X) const
	Finds the node that is closest to the given point X.

virtual Vec3	getElementCenter (int iel) const
	Returns the coordinates of the element center.

virtual void	getNoIntPoints (size_t &nPt, size_t &nIPt)
	Computes the total number of integration points in this patch.

virtual void	swapProjectionBasis ()
	Swaps between the first and second projection basis.

virtual bool	evalSolution (Matrix &sField, const Vector &locSol, const int *npe, int n_f=0, bool piola=false) const
	Evaluates the primary solution field at all visualization points.

virtual bool	evalSolution (Matrix &sField, const Vector &locSol, const RealArray *gpar, bool regular=true, int deriv=0, int n_f=0) const
	Evaluates the primary solution field at the given points.

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const int *npe=nullptr, char project=0) const
	Evaluates the secondary solution field at all visualization points.

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const RealArray *gpar, bool regular=true) const
	Evaluates the secondary solution field at the given points.

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const IntVec &elements) const
	Evaluates the secondary solution field at element centers.

Public Member Functions inherited from ASMbase
virtual	~ASMbase ()
	The destructor frees the dynamically allocated data objects.

ASMbase *	cloneUnShared () const
	Returns a copy of this patch with identical FE discretization.

virtual bool	read (std::istream &is)=0
	Creates an instance by reading the given input stream.

virtual bool	readBasis (std::istream &, size_t)
	Reads a basis from the given input stream.

virtual bool	write (std::ostream &os, int basis=0) const =0
	Writes the geometry/basis of the patch to the given stream.

virtual void	addHole (double, double, double)
	Adds a circular immersed boundary in the physical geometry.

virtual void	addHole (double, double, double, double, double)
	Adds an oval immersed boundary in the physical geometry.

virtual bool	setGeometry (RealFunc *, double, double)
	Defines the immersed geometry from a scalar function.

virtual bool	generateFEMTopology ()=0
	Generates the finite element topology data for this patch.

virtual void	clear (bool retainGeometry=false)
	Clears the contents of this patch, making it empty.

virtual bool	addXElms (short int dim, short int item, size_t nXn, IntVec &nodes)
	Adds extraordinary elements associated with a patch boundary.

bool	addLagrangeMultipliers (size_t iel, const IntVec &mGLag, unsigned char nnLag=1)
	Adds a set of Lagrange multipliers to the specified element.

bool	addGlobalLagrangeMultipliers (const IntVec &mGLag, unsigned char nnLag=1)
	Adds global Lagrange multipliers to the system.

virtual void	setGauss (int ng)
	Defines the numerical integration scheme nGauss in the patch.

void	setNoFields (unsigned char n)
	Defines the number of solution fields in the patch.

void	setElementActivator (IntFunc *efunc)
	Sets the element activation function.

const IntFunc *	getElementActivator () const
	Returns a pointer to the element activation function.

virtual void	setMinimumSize (double)
	Sets the minimum element size for adaptive refinement.

virtual double	getMinimumSize (int=0) const
	Defines the minimum element size for adaptive refinement.

virtual bool	checkElementSize (int, bool=true) const
	Checks if the specified element is larger than the minimum size.

unsigned char	getNoSpaceDim () const
	Returns the number of spatial dimensions.

unsigned char	getNoParamDim () const
	Returns the number of parameter dimensions.

virtual unsigned char	getNoFields (int b=0) const
	Returns the number of solution fields.

unsigned char	getNoLagPerNode () const
	Returns the number of Lagrange multipliers per node.

virtual bool	getOrder (int &, int &, int &) const
	Returns the polynomial order in each parameter direction.

virtual size_t	getNodeIndex (int globalNum, bool=false) const
	Returns local 1-based index of the node with given global number.

virtual int	getNodeID (size_t inod, bool=false) const
	Returns the global node number for the given node.

size_t	getElmIndex (int globalNum) const
	Returns local 1-based index of element with given global number.

int	getElmID (size_t iel) const
	Returns the global element number for the given element.

virtual unsigned char	getNodalDOFs (size_t inod) const
	Returns the number of DOFs per node.

virtual char	getNodeType (size_t inod) const
	Returns the classification of a node.

bool	isLMn (size_t n) const
	Returns true if node n is a Lagrange multiplier node.

bool	isRMn (size_t n) const
	Returns true if node n is a master node of a rigid coupling.

char	getLMType (size_t inod) const
	Returns the type of a Lagrange multiplier node.

virtual Vec3	getCoord (size_t inod) const =0
	Returns the global coordinates for the given node.

virtual void	getNodalCoordinates (Matrix &X, bool geo=false) const =0
	Returns a matrix with all nodal coordinates within the patch.

virtual bool	getElementCoordinates (Matrix &X, int iel, bool forceItg=false) const =0
	Returns a matrix with nodal coordinates for an element.

virtual void	getBoundaryNodes (int lIndex, IntVec &nodes, int basis=0, int thick=1, int orient=-1, bool local=false) const =0
	Finds the global (or patch-local) node numbers on a patch boundary.

virtual void	getBoundary1Nodes (int lIndex, IntVec &nodes, int basis=0, int orient=-1, bool local=false, bool open=false) const
	Finds the global (or patch-local) node numbers on a patch boundary.

void	getBoundaryElms (int lIndex, IntVec &elms, int orient=-1, bool local=false) const
	Finds the global (or patch-local) element numbers on a boundary.

int	getNodeSetIdx (const std::string &setName) const
	Returns (1-based) index of a predefined node set in the patch.

const IntVec &	getNodeSet (int iset) const
	Returns an indexed predefined node set.

IntVec &	getNodeSet (const std::string &setName, int &idx)
	Returns a named node set for update.

bool	isInNodeSet (int iset, int inod) const
	Checks if node inod is within predefined node set iset.

int	parseNodeSet (const std::string &setName, const char *cset, bool assumeZeroBased=false)
	Defines a node set by parsing a list of node numbers.

virtual int	parseNodeBox (const std::string &, const char *)
	Defines a node set by parsing a 3D bounding box.

void	convertNodeSets ()
	Converts node number sets to internal (1-based) node indices.

virtual int	getElementSetIdx (const std::string &) const
	Returns (1-based) index of a predefined element set in the patch.

virtual const IntVec &	getElementSet (int) const
	Returns an indexed predefined element set.

virtual bool	getElementSet (int, std::string &) const
	Returns the name of an indexed predefined element set.

virtual bool	isInElementSet (int, int) const
	Checks if an element is within a predefined element set.

virtual int	parseElemSet (const std::string &, const char *)
	Defines an element set by parsing a list of element numbers.

virtual int	parseElemBox (const std::string &, const std::string &, const char *)
	Defines an element set by parsing a 3D bounding box.

void	printNodes (std::ostream &os) const
	Prints out the nodal coordinates of this patch to the given stream.

void	printElements (std::ostream &os) const
	Prints out element connections of this patch to the given stream.

virtual void	printElmInfo (int, const IntegrandBase *) const
	Prints out additional app-dependent element information.

virtual void	shiftGlobalNodeNums (int nshift)
	Increase all global node numbers by nshift.

void	setGlobalNodeNums (const IntVec &nodes)
	Sets the global node numbers for this patch.

const IntVec &	getMyNodeNums () const
	Returns the actual global node numbers of this patch.

const IntVec &	getGlobalNodeNums () const
	Returns the global node numbers of this patch.

virtual void	shiftGlobalElmNums (int eshift)
	Increase all global element numbers by eshift.

const IntVec &	getGlobalElementNums () const
	Returns the global element numbers of this patch.

void	setActiveElements (IntVec *active)
	Sets the list of active elements during assembly.

bool	isElementActive (int iel, double time=-1.0) const
	Returns true if element with 0-based index iel is active.

bool	inActive (double time=-1.0) const
	Returns true if none of the elements in the patch are active.

double	getAge (int iel, double time) const
	Returns the age of the element with 0-based index iel.

bool	isElementInPartition (int iel) const
	Returns true if element is in process partition.

const IntVec &	getElementNodes (int iel) const
	Returns the nodal point correspondance array for an element.

virtual size_t	getNoBasis () const
	Returns number of bases of this patch.

virtual size_t	getNoNodes (int basis=0) const
	Returns the total number of nodes in this patch.

size_t	getNoElms (bool includeZeroVolElms=false, bool includeXElms=false) const
	Returns the total number of elements in this patch.

int	getMaxElmNo () const
	Returns the highest external element number in this patch.

virtual size_t	getNoBoundaryElms (char, char) const
	Returns the number of elements on a boundary.

size_t	getNoMPCs () const
	Returns the total number of multi-point constraint equations.

virtual void	getNoBouPoints (size_t &nPt, char ldim, char lindx)
	Computes the number of boundary integration points in this patch.

BCVec::const_iterator	begin_BC () const
	Returns the beginning of the BCode array.

BCVec::const_iterator	end_BC () const
	Returns the end of the BCode array.

IntMat::const_iterator	begin_elm () const
	Returns the beginning of the MNPC array.

IntMat::const_iterator	end_elm () const
	Returns the end of the MNPC array.

MPCIter	begin_MPC () const
	Returns the beginning of the mpcs set.

MPCIter	end_MPC () const
	Returns the end of the mpcs set.

MPC *	findMPC (int node, int dof) const
	Returns a pointer to the MPC object for a specified slave, if any.

bool	isShared () const
	Returns true if this patch shares FE data with another patch.

bool	hasXNodes () const
	Returns true if this patch has additional (extraordinary) nodes.

virtual void	getElmConnectivities (IntMat &neighs, int basis=ASM::INTEGRATION_BASIS) const =0
	Calculates the matrix of element neighbour connectivities.

virtual IntMat	getElmNodes (int) const
	Returns the matrix of nodal point correspondance for given basis.

virtual void	copyParameterDomain (const ASMbase *)
	Copies the parameter domain from another patch.

virtual void	closeBoundaries (int dir=1, int basis=0, int master=1)
	Makes two opposite boundaries periodic.

bool	mergeNodes (size_t inod, int globalNum, bool verbose=true)
	Merges a given node in this patch with a given global node.

int	renumberNodes (std::map< int, int > &old2new, int &nNod)
	Renumbers the global node numbers in this patch.

bool	renumberNodes (const std::map< int, int > &old2new, const std::vector< int > &new2old={}, int renumGN=0, std::map< int, int > *degenElm=nullptr)
	Renumbers the global node numbers referred by this patch.

virtual bool	initConstraints ()
	Initializes the multi-point constraint coefficients.

virtual void	setNodeNumbers (const IntVec &nodes)
	Sets the global node numbers for this patch.

bool	hasTimeDependentDirichlet (const std::map< int, RealFunc * > &func, const std::map< int, VecFunc * > &vfunc)
	Checks for time-dependent in-homogeneous Dirichlet conditions.

virtual bool	updateDirichlet (const std::map< int, RealFunc * > &func, const std::map< int, VecFunc * > &vfunc, double time=0.0, const std::map< int, int > *g2l=nullptr, bool tangent=false)
	Updates the time-dependent in-homogeneous Dirichlet coefficients.

virtual bool	updateCoords (const Vector &displ)=0
	Updates the nodal coordinates for this patch.

virtual bool	transform (const Matrix &)
	Applies a transformation matrix from local to global system.

virtual void	initMADOF (const int *)
	Initializes the patch level MADOF array for mixed problems.

virtual void	generateThreadGroups (const Integrand &, bool, bool)
	Generates element groups for multi-threading of interior integrals.

virtual void	generateThreadGroups (char, bool, bool)
	Generates element groups for multi-threading of boundary integrals.

virtual void	generateThreadGroupsFromElms (const IntVec &)
	Generates element groups for multi-threading based on a partition.

virtual void	generateProjThreadGroupsFromElms (const IntVec &)
	Generates element groups for multi-threading based on a partition.

virtual bool	validateThreadGroups (const SAM *) const
	Validates the threading groups based on the assembly data in SAM.

virtual void	changeNumThreads ()
	Hook for changing number of threads.

virtual bool	integrate (Integrand &integrand, GlobalIntegral &glbInt, const TimeDomain &time)=0
	Evaluates an integral over the interior patch domain.

virtual bool	integrate (Integrand &integrand, int lIndex, GlobalIntegral &glbInt, const TimeDomain &time)=0
	Evaluates a boundary integral over a patch face/edge.

virtual bool	integrateEdge (Integrand &integrand, int lEdge, GlobalIntegral &glbInt, const TimeDomain &time)
	Evaluates a boundary integral over a patch edge.

virtual bool	integrate (Integrand &integrand, GlobalIntegral &glbInt, const TimeDomain &time, const ASM::InterfaceChecker &iChk)
	Evaluates an integral over element interfaces in the patch.

virtual bool	diracPoint (Integrand &integrand, GlobalIntegral &glbInt, const double *u, const Vec3 &p)
	Integrates a spatial dirac-delta function over a patch.

virtual int	findElementContaining (const double *param) const =0
	Returns the element that contains a specified spatial point.

virtual double	findPoint (Vec3 &X, double *param) const =0
	Searches for the specified Cartesian point in the patch.

virtual bool	tesselate (ElementBlock &grid, const int *npe) const =0
	Creates a standard FE model of this patch for visualization.

virtual ElementBlock *	immersedGeometry (char *) const
	Returns an additional geometry to visualize (immersed boundaries).

virtual ElementBlock *	extraGeometry (char *) const
	Returns an additional geometry to visualize (spiders, etc.).

virtual void	filterResults (Matrix &, const ElementBlock *) const
	Filters out result point values that are outside physical domain.

virtual bool	getSolution (Matrix &sField, const Vector &locSol, const IntVec &nodes) const
	Extract the primary solution field at the specified nodes.

virtual bool	immersedSolution (Matrix &, const Vector &) const
	Evaluates the primary solution at the immersed geometry points.

virtual bool	extraSolution (Matrix &, const Vector &) const
	Evaluates the primary solution at the extra geometry points.

virtual bool	evalProjSolution (Matrix &sField, const Vector &locSol, const int *npe, int n_f=0) const
	Evaluates the projected solution field at all visualization points.

virtual bool	evalSolutionPiola (Matrix &sField, const Vector &locSol, const RealArray *gpar, bool regular) const
	Evaluates the primary solution field with Piola mapping.

virtual bool	evaluate (const ASMbase *basis, const Vector &locVec, RealArray &vec, int basisNum=1) const
	Evaluates and interpolates a field over a given geometry.

virtual bool	evaluate (const Field *f, RealArray &vec, int basisNum=1) const
	Evaluates and interpolates a scalar field over a given geometry.

virtual bool	evaluate (const FunctionBase *func, RealArray &vec, int basisNum=1, double time=0.0) const
	Evaluates and interpolates a scalar function over a given geometry.

bool	globalL2projection (Matrix &sField, const L2Integrand &integrand, bool continuous=false, bool enforceEnds=false) const
	Projects the secondary solution using a (discrete) global L2-fit.

bool	L2projection (Matrix &sField, IntegrandBase *integrand, const TimeDomain &time)
	Projects the secondary solution using a continuous global L2-fit.

bool	L2projection (Matrix &fVals, FunctionBase *func, double t=0.0)
	Projects an explicit function using a continuous global L2-fit.

bool	L2projection (const std::vector< Matrix * > &fVals, const std::vector< FunctionBase * > &funcs, double t=0.0)
	Projects explicit functions using a continuous global L2-fit.

virtual size_t	getNoProjectionNodes () const
	Returns the number of projection nodes for this patch.

virtual size_t	getNoRefineNodes () const
	Returns the number of nodes on refinement basis for this patch.

virtual size_t	getNoRefineElms () const
	Returns the number of elements on refinement basis for this patch.

virtual Field *	getProjectedField (const Vector &) const
	Returns a field using the projection basis.

virtual Fields *	getProjectedFields (const Vector &, size_t) const
	Returns a field using the projection basis.

virtual bool	createProjectionBasis (bool)
	Creates a separate projection basis for this patch.

virtual bool	separateProjectionBasis () const
	Checks if a separate projection basis is used for this patch.

virtual const ASMbase *	getOutputMaster () const
	Returns the master patch to use for VTF- and HDF5-output.

void	extractElmRes (const Vector &globRes, Vector &elmRes, size_t internalFirst=0) const
	Extracts element results for this patch from a global vector.

void	extractElmRes (const Matrix &globRes, Vector &elmRes, size_t irow) const
	Extracts element results for this patch from a global matrix.

bool	extractNodalVec (const RealArray &globVec, RealArray &nodeVec, const int *madof, int ngnod=-1) const
	Extracts nodal results for this patch from the global vector.

virtual void	extractNodeVec (const RealArray &globVec, RealArray &nodeVec, unsigned char nndof=0, int basis=0) const
	Extracts nodal results for this patch from the global vector.

virtual bool	injectNodeVec (const RealArray &nodeVec, RealArray &globVec, unsigned char nndof=0, int basis=0) const
	Injects nodal results for this patch into the global vector.

bool	injectNodalVec (const RealArray &nodeVec, RealArray &globVec, const IntVec &madof, int basis=0) const
	Injects nodal results for this patch into the global vector.

bool	add2PC (int slave, int dir, int master, int code=0)
	Creates and adds a two-point constraint to this patch.

bool	addMPC (MPC *&mpc, int code=0, bool verbose=false, bool overrideD=false)
	Adds a general multi-point-constraint (MPC) equation to this patch.

virtual bool	addRigidCpl (int lindx, int ldim, int basis, int &gMaster, const Vec3 &Xmaster, bool extraPt=true)
	Adds MPC-equations representing a rigid coupling to this patch.

void	addRigidCouplings (int gMaster, const Vec3 &Xmaster, const IntVec &slaveNodes)
	Adds MPC-equations representing a rigid coupling to this patch.

void	addNodalCouplings (int slave, const IntVec &masters, const RealArray &weights)
	Adds MPC-equations for general nodal couplings in this patch.

void	constrainPatch (int dof, int code=0)
	Constrains all nodes in the patch.

void	constrainNodes (const IntVec &nodes, int dof, int code=0, bool overrideD=false)
	Constrains a list of nodes in the patch.

bool	constrainXnode (int node, int dof, int code=0)
	Constrains an extraordinary node in the patch.

int	prescribe (size_t inod, int dirs, int code, bool overrideD=false)
	Constrains DOFs in the given node to the given value.

int	fix (size_t inod, int dirs=123)
	Constrains DOFs in the given node to zero.

bool	isFixed (int node, int dof, bool all=false) const
	Checks if the given DOFs are fixed.

virtual bool	selfInterconnect (const std::vector< Ipair > &nodes, double xtol=1.0e-8)
	Connects a list of node pairs to each other.

Public Member Functions inherited from ASMunstruct
virtual	~ASMunstruct ()
	Empty destructor.

virtual void	remapErrors (RealArray &errors, const RealArray &orig, bool=false) const
	Remaps element-wise errors from geometry mesh to refinement mesh.

virtual void	extendRefinementDomain (IntSet &, const IntSet &) const
	Extends the refinement domain with information for neighbors.

virtual void	storeMesh (const std::string &fName, int fType=15) const
	Stores the mesh basis to encapsulated postscript files.

Static Public Member Functions
static Go::BsplineBasis	getBezierBasis (int p, double start=-1.0, double end=1.0)
	Returns a Bezier basis of order p.

static void	Sort (int u, int v, int orient, std::vector< LR::Basisfunction * > &functions)
	Sort basis functions based on local knot vectors.

Static Public Member Functions inherited from ASMbase
static void	resetNumbering (int n=0)
	Resets the global element and node counters.

static int	renumberNodes (const ASM::PatchVec &model, std::map< int, int > &old2new)
	Renumbers all global node numbers in the entire model.

static void	mergeAndGetAllMPCs (const ASM::PatchVec &model, MPCSet &allMPCs)
	Computes the set of all MPC-equations over the whole model.

static void	resolveMPCchains (const MPCSet &allMPCs, const ASM::PatchVec &model, bool setPtrOnly=false)
	Resolves (possibly multi-level) chaining in MPC-equations.

Protected Member Functions
	ASMLRSpline (unsigned char n_p, unsigned char n_s, unsigned char n_f)
	The constructor sets the space dimensions.

	ASMLRSpline (const ASMLRSpline &patch, unsigned char n_f)
	Special copy constructor for sharing of FE data.

bool	doRefine (const LR::RefineData &prm, LR::LRSpline *lrspline)
	Refines the mesh adaptively.

virtual int	evalPoint (int iel, const double *param, Vec3 &X) const =0
	Evaluates the geometry at a specified point.

virtual int	evalPoint (const double xi, double param, Vec3 &X) const=0
	Evaluates the geometry at a specified point.

Protected Member Functions inherited from ASMbase
	ASMbase (unsigned char n_p, unsigned char n_s, unsigned char n_f)
	The constructor sets the number of space dimensions and fields.

	ASMbase (const ASMbase &patch, unsigned char n_f)
	Special copy constructor for sharing of FE data.

	ASMbase (const ASMbase &patch)
	Default copy constructor, copying everything except neighbors.

void	addLocal2GlobalCpl (int iSlave, int master, const Tensor &Tlg)
	Creates constraint equations coupling global DOFs to local DOFs.

bool	add3PC (int slave, int dir, int master1, int master2, int code=0)
	Creates and adds a three-point constraint to this patch.

bool	addPeriodicity (size_t master, size_t slave, int dir)
	Creates and adds a periodicity constraint to this patch.

void	makePeriodic (size_t master, size_t slave, int dirs=123)
	Creates periodicity constraints between two nodes in this patch.

void	addNeighbor (ASMbase *pch)
	Adds a patch to the list of neighbors of this patch.

bool	createRgdMasterNode (int &gMaster, const Vec3 &Xmaster)
	Creates an additional master node for a rigid coupling.

void	addRigidMPC (int gSlave, int gMaster, const Vec3 &dX)
	Adds MPC-equations representing a rigid arm to a 6-DOF node.

int	getNoGaussPt (int p, bool neumann=false) const
	Returns the number of Gauss points to use in one direction.

int	searchCtrlPt (RealArray::const_iterator cit, RealArray::const_iterator end, const Vec3 &X, int dimension, double xtol=0.001) const
	Helper method used by evalPoint to search for a control point.

virtual void	findBoundaryElms (IntVec &elms, int lIndex, int orient) const =0
	Finds the patch-local element numbers on a patch boundary.

virtual bool	assembleL2matrices (SystemMatrix &A, SystemVector &B, const L2Integrand &obj, bool continuous) const
	Assembles L2-projection matrices for the secondary solution.

bool	allDofs (int dirs) const
	Returns true if dirs constains all local DOFs in the patch.

bool	writeLagBasis (std::ostream &os, const char *type) const
	Writes a Lagrangian basis to the given stream.

Protected Member Functions inherited from ASMunstruct
	ASMunstruct ()
	The constructor is protected to allow objects of sub-classes only.

Static Protected Member Functions
static bool	checkThreadGroups (const IntMat &groups, const std::vector< const LR::LRSpline * > &bases, const LR::LRSpline *threadBasis)
	Santity check thread groups.

Static Protected Member Functions inherited from ASMbase
static bool	deformedConfig (const Matrix &Xnod, Vectors &eVec, bool force2nd=false)
	Calculates the deformed configuration for current element.

static bool	collapseNodes (ASMbase &pch1, int node1, ASMbase &pch2, int node2)
	Collapses the given two nodes into one.

Protected Attributes
std::shared_ptr< LR::LRSpline >	geomB
	Pointer to spline object of the geometry basis.

std::shared_ptr< LR::LRSpline >	projB
	Pointer to spline object of the projection basis.

std::shared_ptr< LR::LRSpline >	projB2
	Pointer to spline object of the secondary projection basis.

std::shared_ptr< LR::LRSpline >	refB
	Pointer to spline object of the refinement basis.

ThreadGroups	threadGroups
	Element groups for multi-threaded assembly.

ThreadGroups	projThreadGroups
	Element groups for multi-threaded assembly - projection basis.

ThreadGroups	proj2ThreadGroups
	Element groups for multi-threaded assembly - second projection basis.

Protected Attributes inherited from ASMbase
unsigned char	ndim
	Number of parametric dimensions (1, 2 or 3)

unsigned char	nsd
	Number of space dimensions (ndim <= nsd <= 3)

unsigned char	nf
	Number of primary solution fields (1 or larger)

unsigned char	nLag
	Number of Lagrange multipliers per node.

size_t	nel
	Number of regular elements in this patch.

size_t	nnod
	Number of regular nodes in this patch.

const IntVec &	MLGE
	Matrix of Local to Global Element numbers.

const IntVec &	MLGN
	Matrix of Local to Global Node numbers.

const IntMat &	MNPC
	Matrix of Nodal Point Correspondance.

const char	shareFE
	Flag telling whether this patch shares its data with another patch.

BCVec	BCode
	Array of Boundary Condition codes.

MPCMap	dCode
	Inhomogeneous Dirichlet condition codes for the MPCs.

MPCSet	mpcs
	All multi-point constraints with the slave in this patch.

std::vector< ASM::NodeSet >	nodeSets
	Node sets for explicit Dirichlet BCs.

IntVec	myMLGE
	The actual Matrix of Local to Global Element numbers.

IntVec	myMLGN
	The actual Matrix of Local to Global Node numbers.

IntMat	myMNPC
	The actual Matrix of Nodal Point Correspondance.

IntVec	myElms
	Elements on patch - used with partitioning.

int	nGauss
	Numerical integration scheme for this patch.

size_t	firstEl
	Global index to first element within this patch.

size_t	firstIp
	Global index to first interior integration point.

std::map< char, size_t >	firstBp
	Global indices to first integration point for the Neumann boundaries.

ASM::PatchVec	neighbors
	Patches having nodes in common with this one.

std::map< size_t, XYZ >	myRmaster
	Rigid master nodal points.

Additional Inherited Members
Public Types inherited from ASMbase
using	BCVec = std::vector< BC >
	Nodal boundary condition container.

Public Attributes inherited from ASMbase
size_t	idx
	Index of this patch in the multi-patch model.

Static Public Attributes inherited from ASMbase
static bool	fixHomogeneousDirichlet = true
	If true, pre-eliminate fixed DOFs.

static int	dbgElm = 0
	One-based element index to print debugging info for.

static double	modelSize = 1.0
	Characteristic model size.

Protected Types inherited from ASMbase
using	XYZ = std::array< double, 3 >
	Convenience type definition.

Static Protected Attributes inherited from ASMbase
static std::map< int, int >	xNode
	Auxilliary node number map used when establishing Dirichlet constraints.

static int	gEl = 0
	Global element counter.

static int	gNod = 0
	Global node counter.

Detailed Description

Base class for LR B-spline FE assembly drivers.

This class contains methods common for unstructured spline patches.

Constructor & Destructor Documentation

◆ ASMLRSpline() [1/2]

ASMLRSpline::ASMLRSpline	(	unsigned char	n_p,
		unsigned char	n_s,
		unsigned char	n_f
	)

protected

The constructor sets the space dimensions.

Parameters

[in]	n_p	Number of parameter dimensions
[in]	n_s	Number of spatial dimensions
[in]	n_f	Number of primary solution fields

References geomB.

◆ ASMLRSpline() [2/2]

ASMLRSpline::ASMLRSpline	(	const ASMLRSpline &	patch,
		unsigned char	n_f
	)

protected

Special copy constructor for sharing of FE data.

Parameters

[in]	patch	The patch to use FE data from
[in]	n_f	Number of primary solution fields

Member Function Documentation

◆ checkThreadGroups()

bool ASMLRSpline::checkThreadGroups	(	const IntMat &	groups,
		const std::vector< const LR::LRSpline * > &	bases,
		const LR::LRSpline *	threadBasis
	)

staticprotected

Santity check thread groups.

Parameters

[in]	groups	The generated thread groups
[in]	bases	The bases to check for
[in]	threadBasis	The LRSpline the element groups are derived from

Referenced by ASMu2Dmx::generateThreadGroups(), and ASMu3Dmx::generateThreadGroups().

◆ doRefine()

bool ASMLRSpline::doRefine	(	const LR::RefineData &	prm,
		LR::LRSpline *	lrspline
	)

protected

Refines the mesh adaptively.

Parameters

[in]	prm	Input data used to control the mesh refinement
	lrspline	The spline to perform adaptation for

References ASMbase::clear(), doRefine(), LR::RefineData::elements, LR::RefineData::errors, and LR::RefineData::options.

Referenced by doRefine(), ASMu2Dmx::refine(), and ASMu3Dmx::refine().

◆ empty()

virtual bool ASMLRSpline::empty ( ) const

inlinevirtual

Checks if the patch is empty.

Implements ASMbase.

References geomB.

Referenced by ASMu2DIB::generateFEMTopology(), and ASMu2D::InterfaceChecker::getIntersections().

◆ evalPoint() [1/2]

virtual int ASMbase::evalPoint	(	const double *	xi,
		double *	param,
		Vec3 &	X
	)		const

protectedvirtual

Evaluates the geometry at a specified point.

Parameters

[in]	xi	Dimensionless parameters in range [0.0,1.0] of the point
[out]	param	The parameters of the point in the knot-span domain
[out]	X	The Cartesian coordinates of the point

Returns: Local node number within the patch that matches the point

Implements ASMbase.

Reimplemented in ASMu2D, and ASMu3D.

◆ evalPoint() [2/2]

virtual int ASMLRSpline::evalPoint	(	int	iel,
		const double *	param,
		Vec3 &	X
	)		const

protectedpure virtual

Evaluates the geometry at a specified point.

Implemented in ASMu2D, and ASMu3D.

Referenced by getElementCenter().

◆ evalSolution() [1/6]

virtual LR::LRSpline * ASMLRSpline::evalSolution ( const IntegrandBase & integrand ) const

pure virtual

Projects the secondary solution field onto the primary basis.

Parameters

[in] integrand Object with problem-specific data and methods

Implemented in ASMu2D, ASMu2Dmx, ASMu3D, and ASMu3Dmx.

◆ evalSolution() [2/6]

bool ASMbase::evalSolution	(	Matrix &	sField,
		const IntegrandBase &	integrand,
		const int *	npe = `nullptr`,
		char	project = `0`
	)		const

virtual

Evaluates the secondary solution field at all visualization points.

Parameters

[out]	sField	Solution field
[in]	integrand	Object with problem-specific data and methods
[in]	npe	Number of visualization nodes over each knot span
[in]	project	Flag indicating result recovery method

The secondary solution is derived from the primary solution, which is assumed to be stored within the integrand for current patch. If npe is null, the solution is recovered or evaluated at the Greville points and then projected onto the spline basis to obtain the control point values, which then are returned through sField. If npe is not null and project is defined, the solution is also projected onto the spline basis, and then evaluated at the npe points.

Reimplemented from ASMbase.

Reimplemented in ASMu2D, ASMu2Dmx, ASMu3D, and ASMu3Dmx.

◆ evalSolution() [3/6]

bool ASMbase::evalSolution	(	Matrix &	sField,
		const IntegrandBase &	integrand,
		const IntVec &	elements
	)		const

virtual

Evaluates the secondary solution field at element centers.

Parameters

[out]	sField	Solution field
[in]	integrand	Object with problem-specific data and methods
[in]	elements	List of elements to evaluate for (all if empty)

The secondary solution is derived from the primary solution, which is assumed to be stored within the integrand for current patch. This method evaluates the secondary solution at the center of the provided list of elements, or for all if the list is empty.

Reimplemented from ASMbase.

◆ evalSolution() [4/6]

bool ASMbase::evalSolution	(	Matrix &	sField,
		const IntegrandBase &	integrand,
		const RealArray *	gpar,
		bool	regular = `true`
	)		const

virtual

Evaluates the secondary solution field at the given points.

Parameters

[out]	sField	Solution field
[in]	integrand	Object with problem-specific data and methods
[in]	gpar	Parameter values of the result sampling points
[in]	regular	Flag indicating how the sampling points are defined

The secondary solution is derived from the primary solution, which is assumed to be stored within the integrand for current patch. When regular is true, it is assumed that the parameter value array gpar forms a regular tensor-product point grid of dimension gpar[0].size() X gpar[1].size() X gpar[2].size(). Otherwise, we assume that it contains the u, v and w parameters directly for each sampling point.

Reimplemented from ASMbase.

Reimplemented in ASMu2Dmx, ASMu3Dmx, ASMu2D, ASMu2Dmx, ASMu3D, and ASMu3Dmx.

◆ evalSolution() [5/6]

bool ASMbase::evalSolution	(	Matrix &	sField,
		const Vector &	locSol,
		const int *	npe,
		int	n_f = `0`,
		bool	piola = `false`
	)		const

virtual

Evaluates the primary solution field at all visualization points.

Parameters

[out]	sField	Solution field
[in]	locSol	Solution vector local to current patch
[in]	npe	Number of visualization nodes over each knot span
[in]	n_f	If nonzero, mixed evaluates n_f fields on first basis
[in]	piola	If true, use piola mapping

Reimplemented from ASMbase.

Reimplemented in ASMu2D, ASMu2Dmx, ASMu3D, and ASMu3Dmx.

◆ evalSolution() [6/6]

bool ASMbase::evalSolution	(	Matrix &	sField,
		const Vector &	locSol,
		const RealArray *	gpar,
		bool	regular = `true`,
		int	deriv = `0`,
		int	n_f = `0`
	)		const

virtual

Evaluates the primary solution field at the given points.

Parameters

[out]	sField	Solution field
[in]	locSol	Solution vector local to current patch
[in]	gpar	Parameter values of the result sampling points
[in]	regular	Flag indicating how the sampling points are defined
[in]	deriv	Derivative order to return
[in]	n_f	If nonzero, mixed evaluates n_f fields on first basis

When regular is true, it is assumed that the parameter value array gpar forms a regular tensor-product point grid of dimension gpar[0].size() X gpar[1].size() X gpar[2].size(). Otherwise, we assume that it contains the u, v and w parameters directly for each sampling point.

Reimplemented from ASMbase.

Reimplemented in ASMu2Dmx, ASMu3Dmx, ASMu2D, ASMu2Dmx, ASMu3D, and ASMu3Dmx.

◆ findClosestNode()

std::pair< size_t, double > ASMLRSpline::findClosestNode ( const Vec3 & X ) const

virtual

Finds the node that is closest to the given point X.

Reimplemented from ASMbase.

References geomB, and ASMbase::nsd.

◆ getBoundaryCovered()

IntVec ASMLRSpline::getBoundaryCovered ( const IntSet & nodes ) const

virtual

Returns all boundary functions that are covered by the given nodes.

Parameters

[in] nodes Set of (0-based) patch local node IDs

Returns: 0-based node IDs for boundary functions whose support is completely covered by the union of the support of the input nodes

Reimplemented from ASMunstruct.

References GlobalNodes::getBoundaryNodes(), ASMbase::getNoParamDim(), and refB.

◆ getElementCenter()

Vec3 ASMLRSpline::getElementCenter ( int iel ) const

virtual

Returns the coordinates of the element center.

Implements ASMbase.

References evalPoint(), geomB, and ASMbase::ndim.

◆ getNoIntPoints()

void ASMLRSpline::getNoIntPoints	(	size_t &	nPt,
		size_t &	nIPt
	)

virtual

Computes the total number of integration points in this patch.

Reimplemented from ASMbase.

Reimplemented in ASMu2DIB.

References ASMbase::firstIp, ASMbase::getOrder(), ASMbase::MLGE, ASMbase::ndim, ASMbase::nel, and ASMbase::nGauss.

◆ getOverlappingNodes() [1/2]

IntVec ASMLRSpline::getOverlappingNodes	(	const IntSet &	nodes,
		int	dir = `7`
	)		const

Returns all functions whose support overlap with the input nodes.

Parameters

[in]	nodes	List of (0-based) patch local node IDs (typically requested by adaptive refinement)
[in]	dir	3-bit binary mask on which parameter directions are allowed to grow; i.e. bin(011)=dec(3) allows u-direction and v-direction to grow, default is bin(111)=dec(7) all directions

Returns: 0-based node IDs for functions with overlapping support with the ones in boundary

References refB.

Referenced by ASMu3D::extendRefinementDomain(), and getOverlappingNodes().

◆ getOverlappingNodes() [2/2]

IntVec ASMLRSpline::getOverlappingNodes	(	int	node,
		int	dir = `7`
	)		const

inline

Returns all functions whose support overlap with the input node.

Parameters

[in]	node	0-based patch local node ID
[in]	dir	3-bit binary mask for which parameter directions can grow

Returns: 0-based node IDs for functions with overlapping support

References getOverlappingNodes().

◆ getParameterDomain()

bool ASMLRSpline::getParameterDomain	(	Real2DMat &	u,
		IntVec *	corners
	)		const

virtual

Returns parameter values and node numbers of the domain corners.

Implements ASMbase.

References geomB, and K.

◆ refine()

bool ASMLRSpline::refine	(	const LR::RefineData &	prm,
		Vectors &	sol
	)

virtual

Refines the mesh adaptively.

Parameters

[in]	prm	Input data used to control the mesh refinement
	sol	Control point results values that are transferred to new mesh

Implements ASMunstruct.

Reimplemented in ASMu2D, ASMu2D, ASMu2Dmx, ASMu2Dmx, ASMu2Dmx, ASMu3D, ASMu3D, ASMu3Dmx, ASMu3Dmx, and ASMu3Dmx.

References geomB.

Referenced by ASMu2D::refine(), and ASMu3D::refine().

◆ swapProjectionBasis()

void ASMLRSpline::swapProjectionBasis ( )

virtual

Swaps between the first and second projection basis.

Reimplemented from ASMbase.

References proj2ThreadGroups, projB, projB2, and projThreadGroups.

◆ transferCntrlPtVars() [1/2]

virtual bool ASMLRSpline::transferCntrlPtVars	(	const LR::LRSpline *	oldBasis,
		RealArray &	newVar,
		int	nGauss
	)		const

pure virtual

Transfers control point variables from old basis to this patch.

Parameters

[in]	oldBasis	The LR-spline basis to transfer from
[out]	newVar	Gauss point variables associated with this patch
[in]	nGauss	Number of Gauss points along a knot-span

Implemented in ASMu2D, ASMu3D, ASMu2D, and ASMu3D.

Referenced by transferCntrlPtVars().

◆ transferCntrlPtVars() [2/2]

bool ASMLRSpline::transferCntrlPtVars	(	LR::LRSpline *	oldBasis,
		const RealArray &	oldVar,
		RealArray &	newVar,
		int	nGauss,
		int	nf = `1`
	)		const

Transfers control point variables from old basis to this patch.

Parameters

[in]	oldBasis	The LR-spline basis to transfer from
[in]	oldVar	Control point variables associated with oldBasis
[out]	newVar	Gauss point variables associated with this patch
[in]	nGauss	Number of Gauss points along a knot-span
[in]	nf	Number of field components

References ASMbase::nf, ASMbase::nGauss, and transferCntrlPtVars().

◆ transferGaussPtVars()

virtual bool ASMLRSpline::transferGaussPtVars	(	const LR::LRSpline *	oldBasis,
		const RealArray &	oldVar,
		RealArray &	newVar,
		int	nGauss
	)		const

pure virtual

Transfers Gauss point variables from old basis to this patch.

Parameters

[in]	oldBasis	The LR-spline basis to transfer from
[in]	oldVar	Gauss point variables associated with oldBasis
[out]	newVar	Gauss point variables associated with this patch
[in]	nGauss	Number of Gauss points along a knot-span

Implemented in ASMu2D, and ASMu3D.

◆ transferGaussPtVarsN()

virtual bool ASMLRSpline::transferGaussPtVarsN	(	const LR::LRSpline *	oldBasis,
		const RealArray &	oldVar,
		RealArray &	newVar,
		int	nGauss
	)		const

pure virtual

Transfers Gauss point variables from old basis to this patch.

Parameters

[in]	oldBasis	The LR-spline basis to transfer from
[in]	oldVar	Gauss point variables associated with oldBasis
[out]	newVar	Gauss point variables associated with this patch
[in]	nGauss	Number of Gauss points along a knot-span

Implemented in ASMu2D, and ASMu3D.

The documentation for this class was generated from the following files:

/home/runner/work/IFEM-2/IFEM-2/src/ASM/LR/ASMLRSpline.h
/home/runner/work/IFEM-2/IFEM-2/src/ASM/LR/ASMLRSpline.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ASMLRSpline() [1/2]

◆ ASMLRSpline() [2/2]

Member Function Documentation

◆ checkThreadGroups()

◆ doRefine()

◆ empty()

◆ evalPoint() [1/2]

◆ evalPoint() [2/2]

◆ evalSolution() [1/6]

◆ evalSolution() [2/6]

◆ evalSolution() [3/6]

◆ evalSolution() [4/6]

◆ evalSolution() [5/6]

◆ evalSolution() [6/6]

◆ findClosestNode()

◆ getBoundaryCovered()

◆ getElementCenter()

◆ getNoIntPoints()

◆ getOverlappingNodes() [1/2]

◆ getOverlappingNodes() [2/2]

◆ getParameterDomain()

◆ refine()

◆ swapProjectionBasis()

◆ transferCntrlPtVars() [1/2]

◆ transferCntrlPtVars() [2/2]

◆ transferGaussPtVars()

◆ transferGaussPtVarsN()
